Spindle Series

“The All-Rounder”

ER11 UP – 1/4″ (6 mm)

Speed up your cycle times and reduce tool breakage with the compact 625 Series. Ideal for moldmaking, milling or finishing with small tools up to 1/4” / 6 mm capacity. Direct-drive reliability with no duty cycle.

625 Series

Governed 30,000 to 65,000 RPM, < 0.55 HP (0.41 kW).

625X Series

Double Turbine X power – governed 30,000 to 50,000 RPM, < 0.78 HP (0.58 kW).

“The Workhorse”

ER11 UP – 1/4″ (6 mm)

Robust and reliable the 650 Series is ideal for heavier duty applications and milling hard materials.

Effective in all materials, including tool steel, titanium, and ceramics. No heat in 24/7 operation.

650 Series

Governed 25,000 to 40,000 RPM, < 0.88 HP (0.66 kW).

650X Series

Double Turbine X power – governed 25,000 to 40,000 RPM, < 1.4 HP (1.04 kW).

ER8 UP – 1/8″ (3 mm)

Achieve the SFM you need for small tools with governed constant 40,000 to 90,000 RPM, with up to 0.2 HP (0.15 kW) in power.

The constant high speed optimizes your tool performance, preventing breakages on micro tools and the 50 mm extended barrel allows for close workpiece operations or for work on machines with a short z-axis travel.

“The Mighty Mini Spindle”

ER8 UP – 1/8″ (3 mm)

The 600X’s low air flow requirement facilitates through spindle air supply on any CNC. The miniature profile makes programming easy and fits Bumotec and Chiron machines.

Double Turbine X power – governed 65,000 to 80,000 RPM, < 0.15 HP (0.11 kW).

“The Sprinter”

ER8 UP – 1/8″ (3 mm)

Engineered for high-speed micro-machining. Ideal for engraving, milling, drilling and finishing with small tools.

Only 2 moving parts result in low friction, no heat and great reliability.

Governed 40,000 to 90,000 RPM, < 0.2 HP (0.15 kW).

RoboDrill, Brother, and other machines auto-load Air Turbine Spindles®. Maintain constant High Speed in Cut with BT30 or DIN30 format.

602DT Series

ER8 UP – 1/8″ (3 mm)

Governed 40,000, 50,000 or 65,000 RPM, < 0.45 HP (0.34 kW).

625DT Series

ER11 UP – 1/4″ (6 mm)

Governed 30,000, 40,000, 50,000 or 65,000 RPM, < 0.55 HP (0.41 kW).

625XDT Series

ER11 UP – 1/4″ (6 mm)

Double Turbine X Version with up to governed 30,000, 40,000 and 50,000 RPM with power up to 0.78 HP (0.58 kW).

ER11 UP – 1/4″ (6 mm)

Change high speeds and power in moments using just a hex key. Direct Drive Reliability with no heat. 2µ precision and no thermal effects on accuracy.

625XVS Series

Governed 30,000 RPM 0.4 HP in single turbine mode.
Governed 50,000 RPM 0.7 HP in twin-turbine mode.

650XVS Series

Governed 25,000 RPM 0.7 HP in single turbine mode.
Governed 40,000 RPM 1.4 HP in twin-turbine mode.

“The Titan”

ER11 UP – 1/4″ (6 mm)

Ideal for heavier duty applications and milling at 50,000 RPM in corners. No thermal expansion and dramatically improved cycle times with no duty cycle at high speed. Optimized tool performance & life.

Governed 50,000 RPM, < 0.94 HP (0.7 kW).

“The Super Model”

Extended barrel for deep pockets and concave molds.

602L Series

ER8 UP – 1/8″ (3 mm)

Governed 40,000 to 90,000 RPM, < 0.2 HP (0.15 kW).
Extended 100mm barrel.

625L Series

ER11 UP – 1/4″ (6 mm)

Governed 30,000 to 50,000 RPM, < 0.50 HP (0.37 kW).
Select between 50 mm and 100 mm extended barrels.

650L Series

ER11 UP – 1/4″ (6 mm)

Governed 25,000 to 40,000 RPM, < 0.88 HP (0.67 kW).
Extended 100mm barrel.

650XL Series

ER11 UP – 1/4″ (6 mm)

Double Turbine X Version available at governed 25,000 to 40,000 RPM, < 1.4 HP (1.04 kW).

ER11 UP – 1/4″ (6 mm)

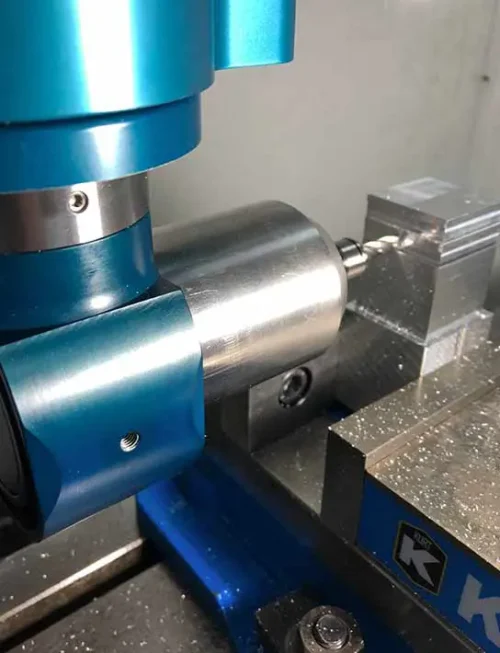

Reach into angles and pockets, or mill laterally.

This one-piece design reduces the height of the spindle and gives you rigidity, with the entire motor within the 90º head. There are no gears or HF brushes to vibrate or burn up as in other 90º heads.

Double Turbine available at governed 30,000, 40,000, or 50,000 RPM, < 0.76 HP (0.57 kW).
