820MX
Integrated MX Series
820MX
At 65,000 RPM the 820MX keeps high speed under load. This compact low vibration live tool spindle operates 24/7 with low heat and has just 2 moving parts and no gears, vanes, or high frequency brushes to burn up.

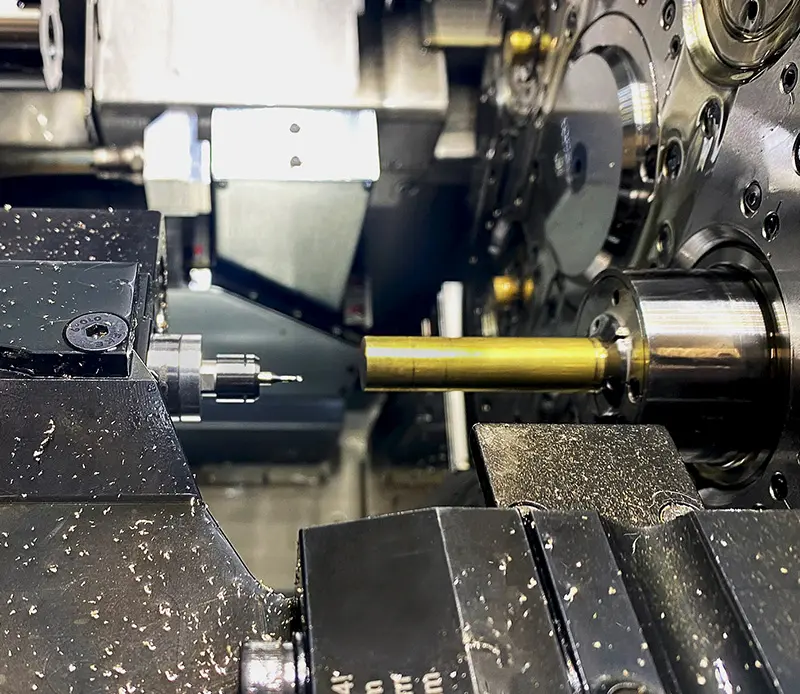

Drop in the 820MX to accelerate your production and increase your productivity. Ideal for lathes, swiss automatics, robotics and finishing with micro tools. No control system or maintenance. Mountable area of Ø 20 mm OD by 50.55 mm. Completely sealed with hose exhausts.
| 820MX Specifications | ||
| Speed | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow | 6 CFM (2.83 L/s) - 9 CFM (4.24 L/s) | |
| Air Hoses and Fittings Minimum Size | 5 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER8 UP - 1/8"(3 mm) | |
| Live Tool Weight | 13 oz (0.37 kg) | |
| 820MX Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Live Tool Weight |
| 50,000 RPM | 65,000 RPM |
| 0.2 HP (0.15 kW) | |
| 90 psi (6.2 bar) | |
| 4 CFM (1.89 L/s) | |
| 6 CFM (2.83 L/s) - 9 CFM (4.24 L/s) | |
| 5 mm internal diameter | |
| Less Than 78 dBA | |
| ER8 UP - 1/8"(3 mm) | |
| 13 oz (0.37 kg) | |
Keep up with Production Pressure with 80,000 RPM Air Turbine Live Tools®
Drop in the 820MX Series for High Speed in Cut.
1
No control system, no lubricator, no gears or high frequency brushes to burn up.
2
No Heat. Direct drive reliability.
3
Just connect 90 psi, 6.2 bar dry clean air supply and mill on any swiss automatic.
4
No wiring or lubrication.
View More Air Turbine Live Tools®

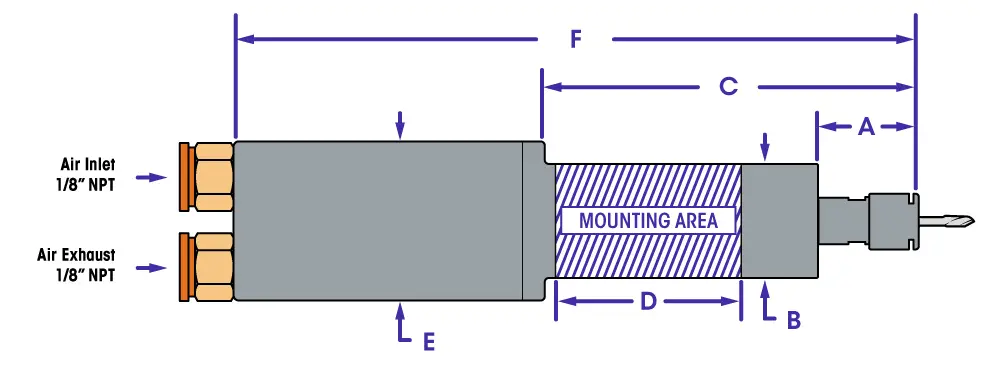

820MX Dimensions
All fittings, couplings, and hoses must have a minimum of 5mm internal diameter.
| 820MX Dimensions | |||
| A | 0.65" (16.51 mm) | D | 1.99" (50.55 mm) |
| B | Ø 0.79" (20 mm) | E | Ø 1.18 (30 mm) |
| C | 2.03" (51.56 mm) | F | 4.99" (126.75 mm) |
| 820MX Dimensions | |
| A | 0.65" (16.51 mm) |
| B | Ø 0.79" (20 mm) |
| C | 2.03" (51.56 mm) |
| D | 1.99" (50.55 mm) |
| E | Ø 1.18 (30 mm) |
| F | 4.99" (126.75 mm) |
Equipment
Included Equipment
► 820MX Air Turbine Live Tool®
► Low Flow Filter Regulator / Extractor
► ER8 UP Collet System (1/8” or 3 mm)
► Collet Wrenches
► Air Hose
► Fittings
► Carrying Case
Standard Equipment
ER8 UP collet system (1/8” or 3 mm collet standard, other sizes optional).
Oil free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Tube 8 mm O.D. - 5 mm I.D. (order by foot) | 16506 |
| Hose & Fitting - 8 mm O.D. - 5 mm I.D. - 12’ | 30041 |
| ER8 UP - 1/8” | ER8 UP - 3 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 50,000 | 70158 | 50,000 | 70159 |
| 65,000 | 70160 | 65,000 | 70161 |
