625X90CAT40
625X 90° Head CNC Spindle Series
Improve your cycle times dramatically and maintain continuous high-speed engagement in angles and pockets with the 625X90CAT40 spindle. The direct-drive governed 90º 625X90 mills with no duty cycle at constant high speed with ultra-low vibration – improving accuracy and rigidity. Rigid steel construction in one piece with the toolholder reduces the height of the unit. The entire motor is in the 90º head.
There are no gears or HF brushes to vibrate or burn up as in other 90º heads. Air Turbine Spindles® patented double turbines deliver extra power to 0.76 HP (0.57 kW) to maintain stable high speed and torque under load. Accelerate your feed rates. Select governed speeds at 30,000, 40,000, and 50,000 RPM. Ideal for mold making, milling, finishing with small cutter capacities, optimizing cutting tool life and performance. Automatic loading from your CNC Magazine for complete integration of constant high speed in your programs.
| 625X90 Specifications | |||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM |
| Power Rating | 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| Air Consumption Working Flow | 22 CFM (10.38 L/s) - 30 CFM (14.16 L/s) | ||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Spindle Weight | 126.4 oz (3.58 kg) | ||
| 625X90CAT40 Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM |
| 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| 90 psi (6.2 bar) | ||
| 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| 22 CFM (10.38 L/s) - 30 CFM (14.16 L/s) | ||
| 8 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 126.4 oz (3.58 kg) | ||

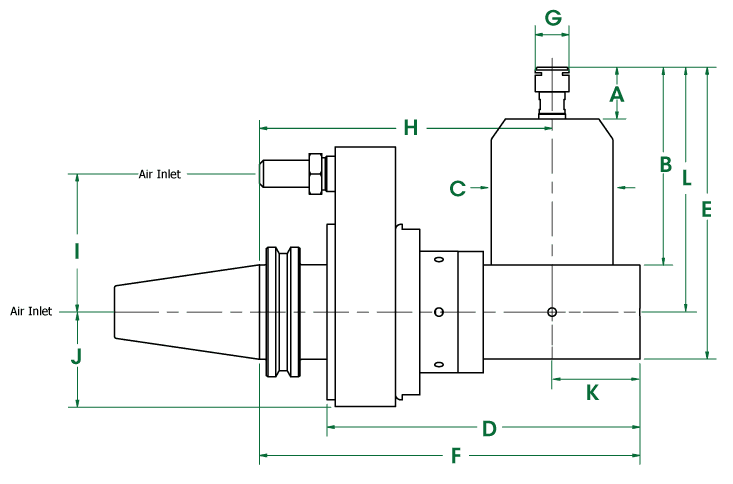

625X90CAT40 Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 625X90CAT40 Dimensions | |||||
| A | 0.96” (24.4 mm) | E | 5.41” (137.3 mm) | I | 2.56” (65 mm) |
| B | 3.67” (93.1 mm) | F | 7.04” (178.9 mm) | J | 1.75” (44.5 mm) |
| C | Ø 2.25” (57.1 mm) | G | Ø 0.63” (16 mm) | K | 1.62" (41.1 mm) |
| D | 5.79” (147.1 mm) | H | 5.42” (137.6 mm) | L | 4.54" (115.3 mm) |
| 625X90CAT40 Dimensions | |
| A | 0.96” (24.4 mm) |
| B | 3.67” (93.1 mm) |
| C | Ø 2.25” (57.1 mm) |
| D | 5.79” (147.1 mm) |
| E | 5.41” (137.3 mm) |
| F | 7.04” (178.9 mm) |
| G | Ø 0.63” (16 mm) |
| H | 5.42” (137.6 mm) |
| I | 2.56” (65 mm) |
| J | 1.75” (44.5 mm) |
| K | 1.62" (41.1 mm) |
| L | 4.54" (115.3 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system (1/4” or 6 mm collet). Oil free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12 mm O.D. - 8 mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12 mm O.D. - 8 mm I.D. - 12’ | 30045 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 64824 | 30,000 | 64825 |
| 40,000 | 64826 | 40,000 | 64827 |
| 50,000 | 64828 | 50,000 | 64829 |
