Constant Governed High Speed and Torque
Enhance your Surface Quality with 0 Run Out on your Hermle Machine with Air Turbine CNC Spindles: Interview with Hermle
25,000 – 90,000 RPM – Power to 1.4 HP
Air Turbine Spindles® utilizes a unique patented direct drive with no vanes, gears or brushes to wear, burn or break. Dramatically reduce your cycle times, and optimize cutting tool performance and life on your Hermle.
Most of the problems that occur in micro machining come from a lack of RPM and poor dynamic runout. Air Turbine Spindles® uses the highest quality runout and balancing systems on the market today. This creates the best dynamic runout accuracy and governed high-speed precision.

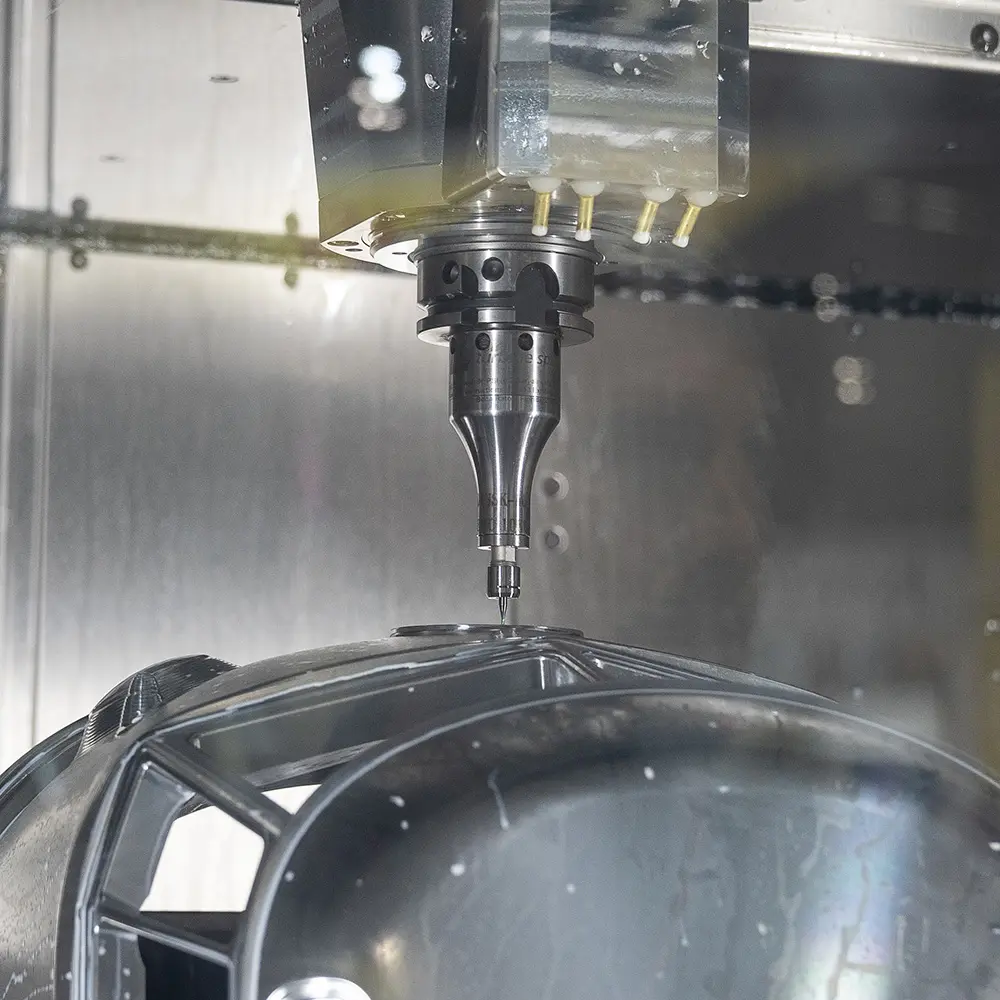

Auto Tool Change High Speed CNC Spindles on Hermle
Easy Installation and Tool Change Functionality
Easily integrate Air Turbine Spindles® into your production by connecting 90 psi / 6.2 bar air. Air Turbine Spindles® can be supplied air from your toolholder and auto tool change right from your Hermle machine’s magazine. Review our user notes and setup guide below for more information.
TECHNICAL NOTICE
Hermle spindle air lines include a “Perlman valve”, which restricts airflow pressure to 30 psi / 3 bar air. This pressure is below the minimum required 90 psi / 6.2 bar pressure required for operation of Air Turbine Spindles®.
Therefore please follow the Hermle approved quick and easy protocol to remove this valve. Failure to remove this valve causes a flow restriction, under power performance and cause damage to your Air Turbine Spindle®.
Drastically Reduce Your Cycle Times
Cut your production time and costs drastically, as Air Turbine Spindles® operate reliably with no duty cycle in 24/7 non-stop operations. There are no gears, high-frequency brushes, or vanes to burn out. As these CNC spindles are air cooled, there is no thermal expansion, ensuring 2µ precision.
Air Turbine Spindles® maintain the rated high speed and power while in the cut, improving your surface finishes and increasing tool life.
Videos
50,000 RPM CNC Spindle on Hermle C400 Engraves Aluminum Elephant
Make Programming Easy with the compact 600X CNC Spindle Series
100mm Extended Barrel Steel Mold Milling at 50k rpm

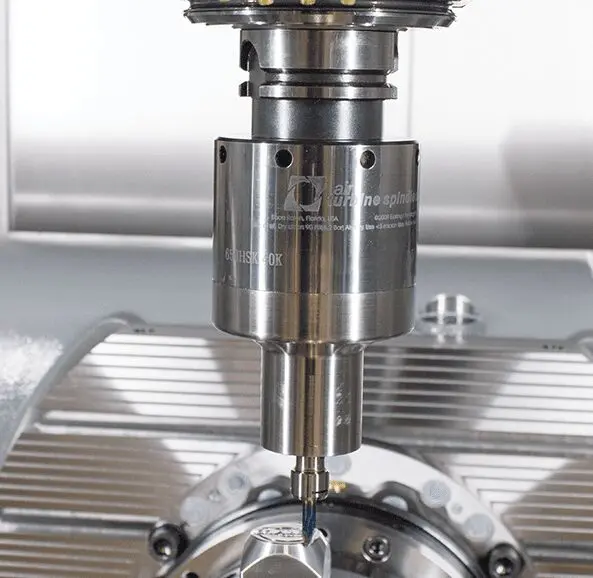

Steel milled at 1600mm/min on Hermle C22U by Air Turbine Spindles® 40,000 rpm 650HSK-A63
Brass Milling on Hermle C42U by Air Turbine Spindles® 50,000 rpm, 0.45 hp
40,000 RPM at Tecnohow Hermle Brazil
Steel Milling at 5000 mm/min on Hermle C600 by Air Turbine Spindles® 50,000 rpm, 0.50 hp 625HSK
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
