Miniature Live Tools for Swiss Automatics
ER8- 1/8″ (3mm)

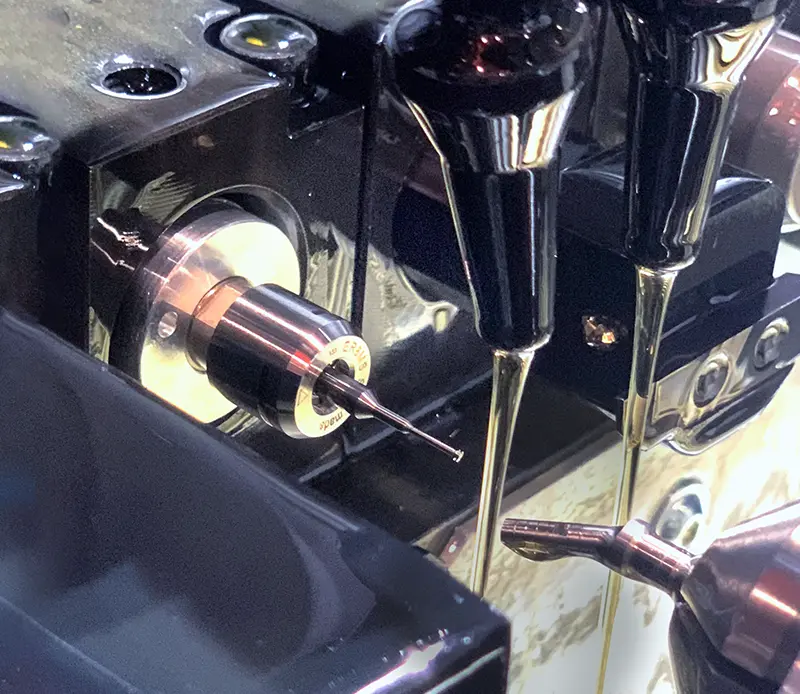

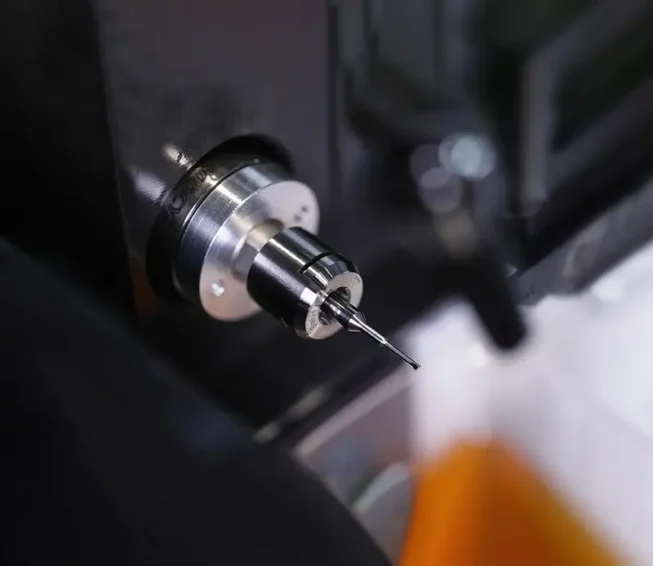

These miniature live tool spindles are easy to install. No need to worry about a control box or wiring as Air Turbine Live Tools® are air powered. Just drop them into your boring bard holder and connect 90 PSI / 6.2 dry compressed air.
800CX Series
Governed 60,000 to 80,000 rpm, < 0.15 hp (0.11 kW).
Available in 22 OD and 25 OD.
800LT Series
Governed 60,000 to 80,000 rpm, < 0.1 hp (0.07 kW).
Integrated MX Series
Increase the power on your lathe by dropping in the Integrated MX Series to accelerate your production and increase your productivity. Cut with precision with Air Turbine Live Tools® do not get hot or vibrate. The air cools the sealed grease-packed bearings. The result is durability in 24/7 operation with no maintenance and no control system.
820MX and 822MX Series
ER8- 1/8″ (3mm)
Governed 50,000 to 65,000 rpm, < 0.20 hp (0.15 kW).
Mountable area of 20mm or 22mm OD by 50.55mm. Completely sealed with hose exhausts.
825MX Series
ER11- 1/4″ (6mm)
Governed 40,000 to 50,000 rpm, < 0.40 hp (0.3 kW).
Mountable area of 25mm OD by 12.7mm. Completely sealed with hose exhausts.
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
