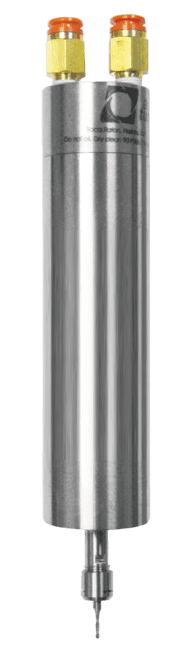

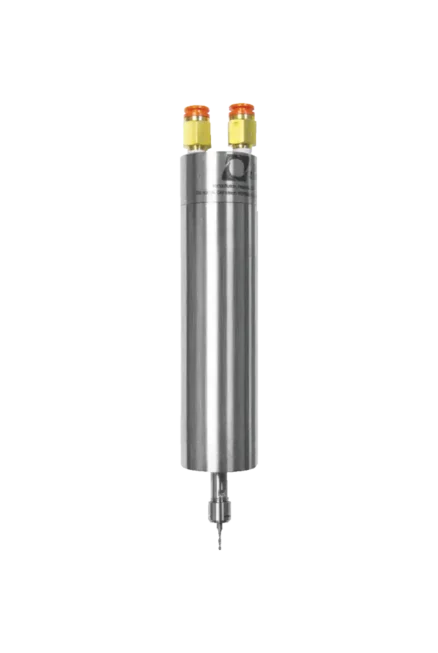

740MX
Sealed Steel Series

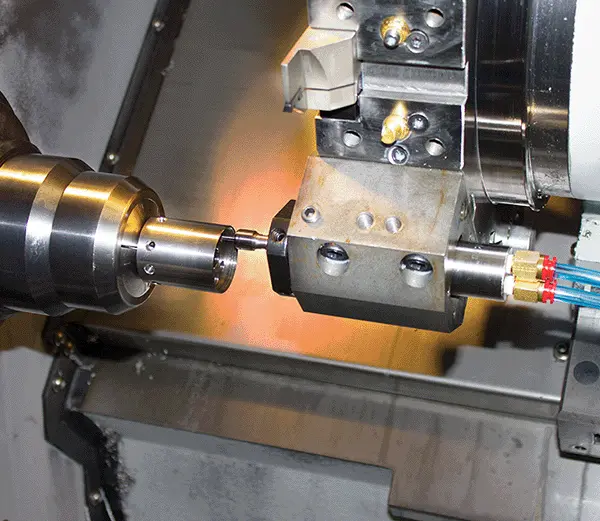

The powerful 740MX is a lightweight motor with power to maintain high speed on your tool path. The direct drive turbine does operations 24/7 with great durability. The rigid steel housing enables you to mount anywhere and is sealed for contaminated environments.
Get governed high speed under load, not speeds that drop when your tool starts cutting. Eliminate lubrication, vanes, gears and brushes and accelerate your production rate.
Mountable area of Ø 40 mm OD by 133 mm. Completely sealed with hose exhausts.
| 740MX Specifications | |||
| Speed | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.3 HP (0.22 Kw) | 0.4 HP (0.3 Kw) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 5 CFM (2.36 L/s) | 6 CFM (2.83 L/s) | |
| Air Consumption Working Flow | 7 CFM(3.30 L/s) - 10 CFM(4.72 L/s) | ||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Motor Weight | 34 oz (0.96 kg) | ||
| 740MX Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.3 HP (0.22 Kw) | 0.4 HP (0.3 Kw) | |
| 90 psi (6.2 bar) | ||
| 5 CFM (2.36 L/s) | 6 CFM (2.83 L/s) | |
| 7 CFM(3.30 L/s) - 10 CFM(4.72 L/s) | ||
| 6 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 34 oz (0.96 kg) | ||

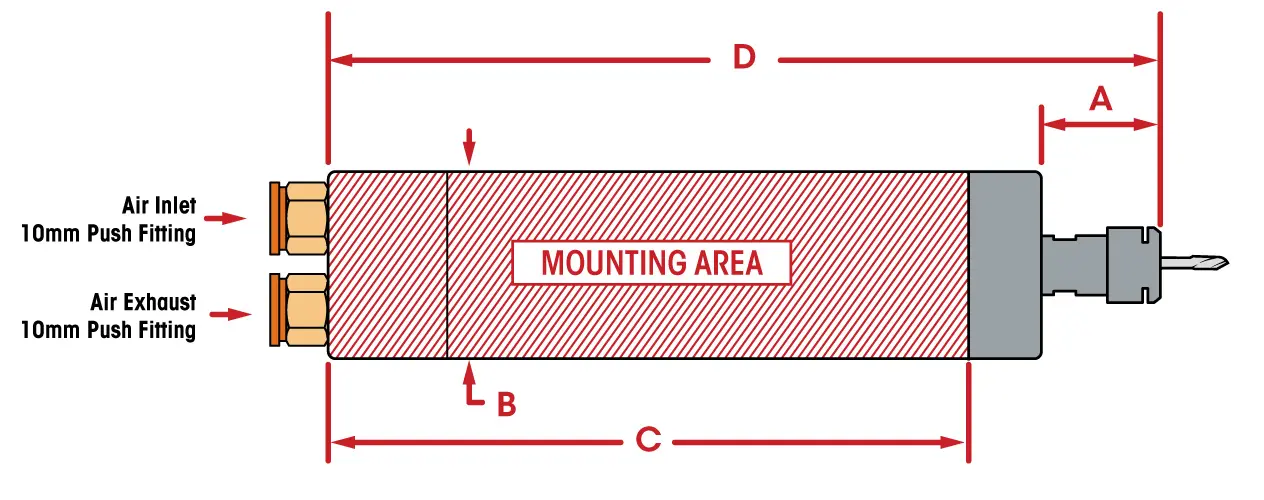

740MX Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 740MX Dimensions | |||
| A | 1.0” (25.4 mm) | C | 5.25” (133.35 mm) |
| B | Ø 1.57 (40 mm) | D | 7.0” (177.8 mm) |
| 740MX Dimensions | |
| A | 1.0” (25.4 mm) |
| B | Ø 1.57 (40 mm) |
| C | 5.25” (133.35 mm) |
| D | 7.0” (177.8 mm) |
Equipment
Included Equipment
► 740MX Motor
► ER11 UP Collet System (1/4” or 6 mm)
► Collet Wrenches
► Low Flow Filter Regulator / Extractor
► Fittings
► Air Hose
► Carrying Case
Standard Equipment
ER11 UP collet system (1/4” or 6 mm collet).
Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Tube 10 mm O.D. - 6.5 mm I.D. (order by foot) | 16508 |
| Hose & Fitting - 10 mm O.D. - 6.5 mm I.D. - 12’ | 30043 |
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 70114 | 40,000 | 70115 |
| 50,000 | 70118 | 50,000 | 70119 |
