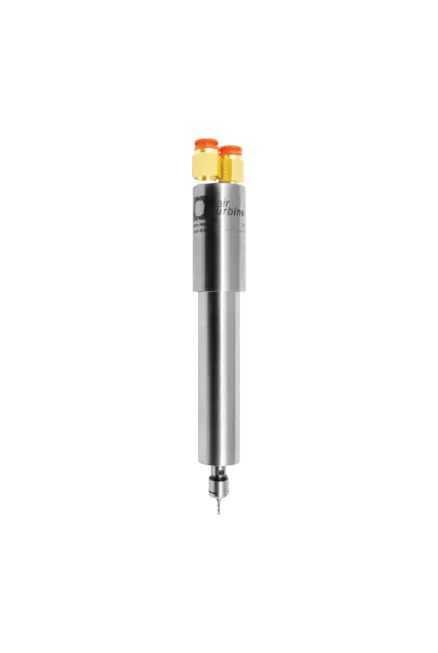

720MX
Sealed Steel Series
The patented double turbine 720MX generates 0.2 HP to keep high speeds up to 65,000 RPM under load. This is a low vibration motor with just 2 moving parts, no gears, vanes, or high-frequency brushes to burn up.
Mount the 720MX to accelerate your production and cut your repair costs and downtime. Ideal for lathes, swiss automatics, robotics, and finishing.
Mountable area of Ø 20 mm OD by 84 mm. Completely sealed with hose exhausts.
| 720MX Specifications | ||
| Speed | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow | 6 CFM (2.83 L/s) - 9 CFM (4.24 L/s) | |
| Air Hoses and Fittings Minimum Size | 5 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER8 UP - 1/8” (3 mm) | |
| Motor Weight | 13 oz (0.37 kg) | |
| 720MX Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 50,000 RPM | 65,000 RPM |
| 0.2 HP (0.15 kW) | |
| 90 psi (6.2 bar) | |
| 4 CFM (1.89 L/s) | |
| 6 CFM (2.83 L/s) - 9 CFM (4.24 L/s) | |
| 5 mm internal diameter | |
| Less Than 78 dBA | |
| ER8 UP - 1/8” (3 mm) | |
| 13 oz (0.37 kg) | |
720MX Dimensions
All fittings, couplings, and hoses must have a minimum of 5 mm internal diameter.
| 720MX Dimensions | |||||
| A | 0.82” (20.83 mm) | C | 3.94” (100.08 mm) | E | Ø 1.18” (30 mm) |
| B | Ø 0.79” (20 mm) | D | 3.31” (84.07 mm) | F | 7.07” (179.58 mm) |
| 720MX Dimensions | |
| A | 0.82” (20.83 mm) |
| B | Ø 0.79” (20 mm) |
| C | 3.94” (100.08 mm) |
| D | 3.31” (84.07 mm) |
| E | Ø 1.18” (30 mm) |
| F | 7.07” (179.58 mm) |
Equipment
Included Equipment
► 720MX Motor
► ER8 UP Collet System (1/8” or 3 mm)
► Collet Wrenches
► Low Flow Filter Regulator / Extractor
► Air Hose
► Fittings
► Carrying Case
Standard Equipment
ER8 UP collet system (1/8” or 3 mm collet).
Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Tube 8 mm O.D. - 5mm I.D. (order by foot) | 16506 |
| Hose & Fitting - 8 mm O.D. - 5 mm I.D. - 12’ | 30041 |
| ER8 UP - 1/8" | ER8 UP - 3 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 50,000 | 70132 | 50,000 | 70133 |
| 65,000 | 70134 | 65,000 | 70135 |
