660JS
660 CNC Spindle Series

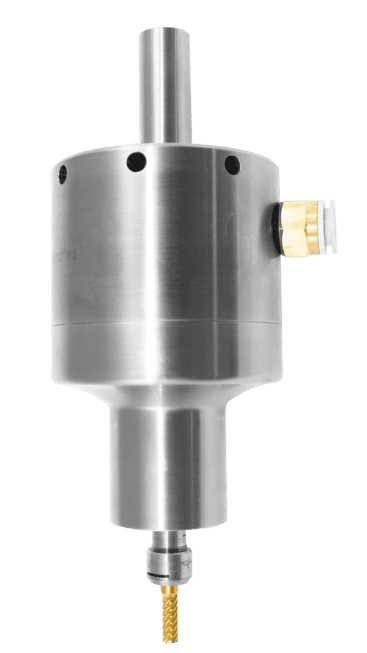

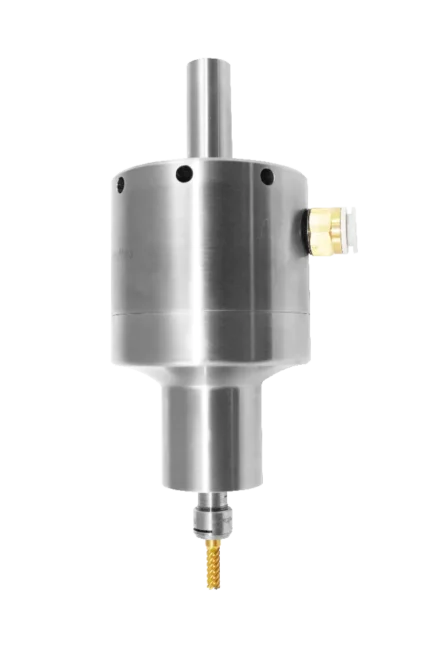

The 660JS (3/4” / 20 mm straight shank) is ideal for heavier duty applications and milling hard materials in corners. The 660 features a higher governed constant speed at 50,000 RPM and even higher power at 0.94 HP (0.7 kW). Our proprietary governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Air Turbine Spindles® direct-drive turbine operates with very low vibration and no heat in 24/7 operation. As a result, the 660 mills faster in all materials, including tool steel, titanium and ceramics reducing cycle times dramatically. For long life milling in hard materials, this robust 660 Series is equipped with quadruple air-cooled angular contact bearings.
Economical consumption of air results from our governor adjusting CFM airflow to the minimum required to maintain high speed. With 2µ precision in its ER11 Ultra-Precision collet the 660 is also very precise. Selectable rear or side air feed on each spindle. Automatic loading from the magazine on all machines.
| 660JS Specifications | |
| Speed | 50,000 RPM |
| Power Rating | 0.94 HP (0.7 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) |
| Air Consumption Idle | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow | 20 CFM - 35 CFM (9.44 L/s - 16.52 L/s) |
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter |
| Sound Level | Less Than 78 dBA |
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) |
| Spindle Weight | 65.8 oz (1.95 kg) |
| 660JS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 50,000 RPM |
| 0.94 HP (0.7 kW) |
| 90 psi (6.2 bar) |
| 20 CFM (9.44 L/s) |
| 20 CFM - 35 CFM (9.44 L/s - 16.52 L/s) |
| 8 mm internal diameter |
| Less Than 78 dBA |
| ER11 UP - 1/4" (6 mm) |
| 65.8 oz (1.95 kg) |
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
660JS Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 660JS Dimensions | |
| A | 0.84" (21.34 mm) |
| B | Ø 1.62" (41.15 mm) |
| C | Ø 3.23” (82 mm) |
| D | 5.79" (147 mm) |
| E | 7.79" (197.87 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12mm O.D. - 8mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’ | 30045 |
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 50,000 | 65200 | 50,000 | 65201 |
Video
High Speed Precision CNC Milling Spindle on your CNC
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
