650XVSJS
650X Variable Speed CNC Spindle Series

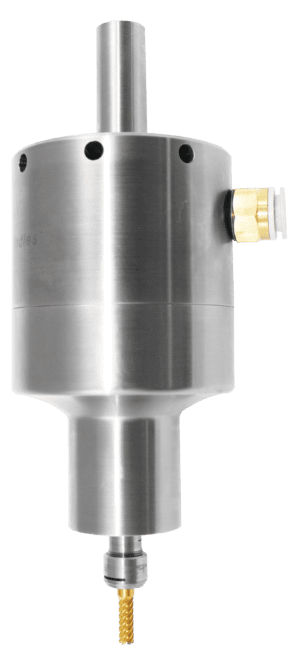

Get nonstop power and precision with the double turbine 650XVSJS (3/4” / 20 mm straight shank). The patented governor-controlled high power 650XVS maintains constant high speed for trochoidal milling in hard materials and cuts your cycle times dramatically. Easily switch between the rated governed speeds of 25,000 RPM with 0.8 HP (0.6 kW) to 40,000 RPM with 1.4 HP (1.04 kW).
Double front ceramic bearings, cooled by turbine air, make this spindle robust and reliable. Mill 24/7 with no duty cycle and no thermal expansion. Eliminates secondary finishing. Selectable rear or side air feed on each spindle. Automatic loading from the magazine on all machines.
Easily Change The Speed and Power Rating
Insert a hex key through the air shaft at the back of the spindle and turn the internal flow control screw up or down to switch between single turbine mode and twin turbine mode.
| 650XVSJS Specifications | ||
| Mode | Single Turbine | Twin Turbine |
| Speed | 25,000 RPM | 40,000 RPM |
| Power Rating | 0.8 HP (0.6 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 13 CFM (6.14 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow | 14 CFM - 40 CFM (6.61 L/s - 18.89 L/s) |
|
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | |
| Spindle Weight | 75.2 oz (2.13 kg) | |
| 650XVSJS Specifications |
| Mode |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| Single Turbine | Twin Turbine |
| 25,000 RPM | 40,000 RPM |
| 0.8 HP (0.6 kW) | 1.4 HP (1.04 kW) |
| 90 psi (6.2 bar) | |
| 13 CFM (6.14 L/s) | 23 CFM (10.85 L/s) |
| 14 CFM - 40 CFM (6.61 L/s - 18.89 L/s) |
|
| 10 mm internal diameter | |
| Less Than 78 dBA | |
| ER11 UP - 1/4” (6 mm) | |
| 75.2 oz (2.13 kg) | |
Change Speed and Power in a Moment on your CNC Spindle
How do I change the speed?
Our patent-pending system makes it very easy to change speed and power rating in a minute with our patented double turbine. A hex key fits through the air shaft at the back of the spindle. The flow control screw is turned up or down by the hex key to switch speeds, as displayed below in the red and green positions below.
Single Turbine Mode Shown
| 650XVS | Single Turbine Mode | Double Turbine Mode |
| Position in Diagram | Green | Red |
| Power Rating | 0.8 HP (0.6 kW) | 1.4 HP (1.04 kW) |
| Speed | 25,000 RPM | 40,000 RPM |
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production

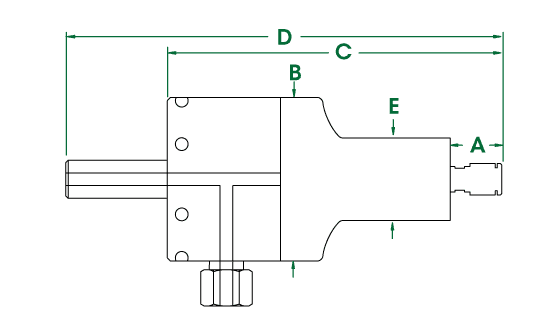

650XVSJS Dimensions
All fittings, couplings, and hoses must have a minimum of 10 mm internal diameter.
| 650XVSJS Dimensions | |
| A | 0.84” (21.34 mm) |
| B | Ø 1.62” (41.15 mm) |
| C | Ø 3.23” (82 mm) |
| D | 6.26” (159 mm) |
| E | 8.26” (209.8 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor with 1/2” NPT | 30084 |
| Tube 16 mm O.D. - 10 mm I.D. (order by foot) | 16516 |
| Hose & Fitting - 16 mm O.D. - 10 mm I.D. - 12’ | 30047 |
| ER11- 1/4" | ER11 - 6 mm |
|---|---|
| Part Numbers | Part Numbers |
| 66100 | 66101 |
Videos
Watch Chips Fly with this Air Turbine Tools® CNC Milling Spindle
50,000 RPM CNC Spindle Creates the Perfect Chocolate Mold at HAAS Allendale
Complete Finishing Operations 4 Times Faster with Air Turbine CNC Spindles
40,000 RPM CNC Spindle Milling Aluminum on DMC125 U DuoBlock
CNC Milling Spindle Runs at 1850 mm/min with 40,000 RPM
CNC Spindle Milling and Drilling Aluminum at 40,000 rpm on Mikron CNC
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
