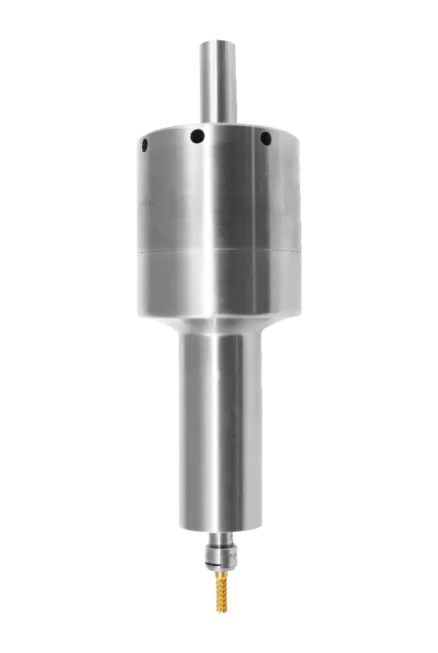

650XLJS (100 mm)
650X Extended Barrel CNC Spindle Series
100 mm
The powerful 650XLJS (100 mm) with the reach for deep pockets, robotic face or edge milling, or finishing operations up to 1.4 HP (1.04 kW) at 25,000, 30,000, or 40,000 RPM. The 650XLJS (100 mm) accelerates feed rates and cuts cycle times. In 24 hour operation, the patented governed high-speed 650XLJS (100 mm) delivers constant high speed and torque under load with high reliability and accuracy as a result of its low friction power unit with few moving parts.
Plenty of power to speed up your inches cut per minute. High cutting speeds are maintained at the periphery of your end mill or bur using the 650X’s unique governed performance to achieve a faster cycle time, a cleaner finished surface, and more production on your CNC. Longer endmill life results from faster cutting with a light pass and no gears, vanes, or brushes to burn up. No duty cycle.
| 650XLJS (100 mm) Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow | 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Spindle Weight | 96 oz (2.72 kg) | ||
| 650XLJS (100 mm) Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| 90 psi (6.2 bar) | ||
| 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| 10 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 96 oz (2.72 kg) | ||
Reach into deep pockets with 1.4 HP with the Air Turbine Extended Barrel CNC Spindle Series
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

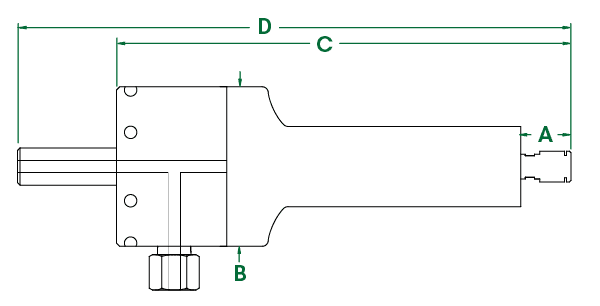

650XLJS (100 mm) Dimensions
All fittings, couplings, and hoses must have a minimum of 10 mm internal diameter.
| 650XLJS (100 mm) Dimensions | |||
| A | 1.08” (27.52 mm) | D | 5.27” (133.89 mm) |
| B | Ø 1.62” (41.16 mm) | E | 8.83” (224.32 mm) |
| C | Ø 3.22” (81.75 mm) | F | 10.82” (274.8 mm) |
| 650XLJS (100 mm) Dimensions | |
| A | 1.08” (27.52 mm) |
| B | Ø 1.62” (41.16 mm) |
| C | Ø 3.22” (81.75 mm) |
| D | 5.27” (133.89 mm) |
| E | 8.83” (224.32 mm) |
| F | 10.82” (274.8 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor with 1/2” NPT | 30084 |
| Tube 16 mm O.D. - 10 mm I.D. (order by foot) | 16516 |
| Hose & Fitting - 16 mm O.D. - 10 mm I.D. - 12’ | 30047 |
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 64942 | 25,000 | 64943 |
| 30,000 | 64944 | 30,000 | 64945 |
| 40,000 | 64946 | 40,000 | 64947 |
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
