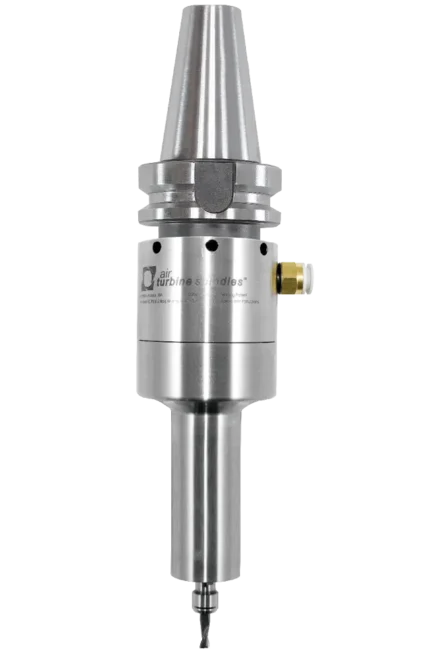

650XLBT40 (100 mm)
650X Extended Barrel CNC Spindle Series
100 mm
Integration of the popular BT40 tool holder into the 650 spindle housing delivers constant high speed with ultra-low vibration and improves accuracy and rigidity. Rigid steel construction in one piece with the tool holder also cuts the height of the unit. With Air Turbine Spindles® patented double turbine’s extra power the 1.4 HP (1.04 kW) motor maintaining stable high speed and torque under load.The powerful 650XLBT40 (100 mm) with the reach for deep pockets, robotic face or edge milling, or finishing operations up to 1.4 HP / 1.04 kW at 25,000, 30,000 or 40,000 RPM. Plenty of power to speed up your inches cut per minute. High cutting speeds are maintained at the periphery of your end mill or burr using the 650’s unique governed performance to achieve a faster cycle time, a cleaner finished surface and more production on your CNC. No duty cycle.
| 650XLBT40 (100 mm) Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow | 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Spindle Weight | 147 oz (4.18 kg) | ||
| 650XLBT40 (100 mm) Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| 90 psi (6.2 bar) | ||
| 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| 10 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 147 oz (4.18 kg) | ||
Reach into deep pockets with 1.4 HP with the Air Turbine Extended Barrel CNC Spindle Series
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

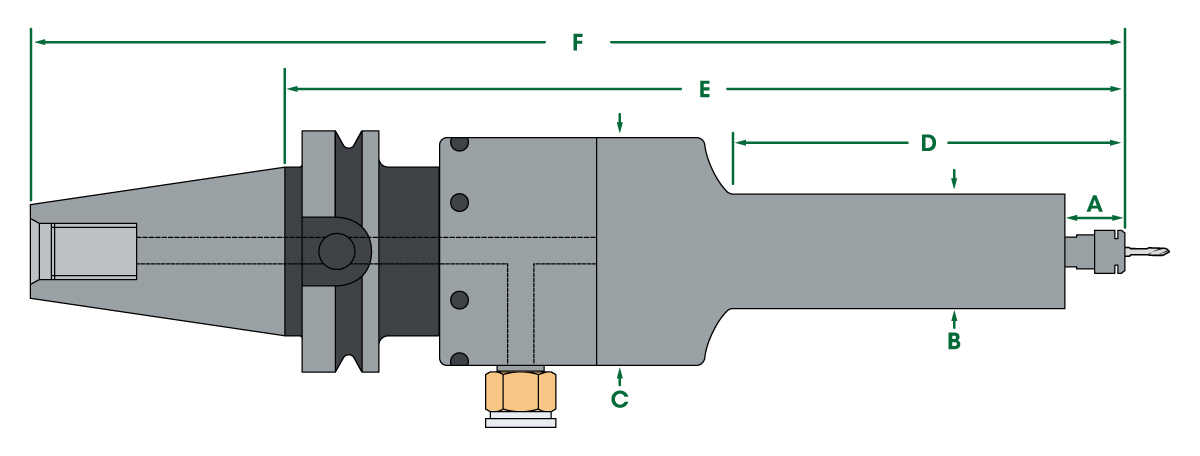

650XLBT40 (100 mm) Dimensions
All fittings, couplings, and hoses must have a minimum of 10 mm internal diameter.
| A | 0.99” (25mm) |
| B | 1.62” (41mm) |
| C | 3.23” (82mm) |
| D | 5.59” (142mm) |
| E | 10.39” (264 mm) |
| F | 13.13” (334 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor with 1/2” NPT | 30084 |
| Tube 16 mm O.D. - 10 mm I.D. (order by foot) | 16516 |
| Hose & Fitting - 16 mm O.D. - 10 mm I.D. - 12’ | 30046 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A universal block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles® as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 64966 | 25,000 | 64967 |
| 30,000 | 64968 | 30,000 | 64969 |
| 40,000 | 64970 | 40,000 | 64971 |
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
