650XJS
650X CNC Spindle Series
Get nonstop power and precision with the double turbine 650XJS (3/4” / 20 mm straight shank) – 25,000 to 40,000 RPM, < 1.4 HP (1.04 kW). The patented governor-controlled high power 650X maintains constant high speed for trochoidal milling in hard materials and cuts your cycle times dramatically. Double front ceramic bearings, cooled by turbine air, make this spindle robust and reliable. Mill 24/7 with no duty cycle and no thermal expansion. Eliminates secondary finishing.
Selectable rear or side air feed on each spindle. Automatic loading from the magazine on all machines.
| 650XJS Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| Air Consumption Working Flow | 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 10 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | ||
| Spindle Weight | 75.2 oz (2.13 kg) | ||
| 650XJS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 1.2 HP (0.9 kW) | 1.3 HP (0.98 kW) | 1.4 HP (1.04 kW) |
| 90 psi (6.2 bar) | ||
| 14 CFM (6.61 L/s) | 20 CFM (8.44 L/s) | 23 CFM (10.85 L/s) |
| 19 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| 10 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4" (6 mm) | ||
| 75.2 oz (2.13 kg) | ||
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
650XJS Dimensions
All fittings, couplings, and hoses must have a minimum of 10 mm internal diameter.
| 650XJS Dimensions | |
| A | 0.84” (21.34 mm) |
| B | Ø 1.62” (41.15 mm) |
| C | Ø 3.23” (82 mm) |
| D | 6.26” (159 mm) |
| E | 8.26” (209.8 mm) |
Equipment
Included Equipment
Standard Equipment

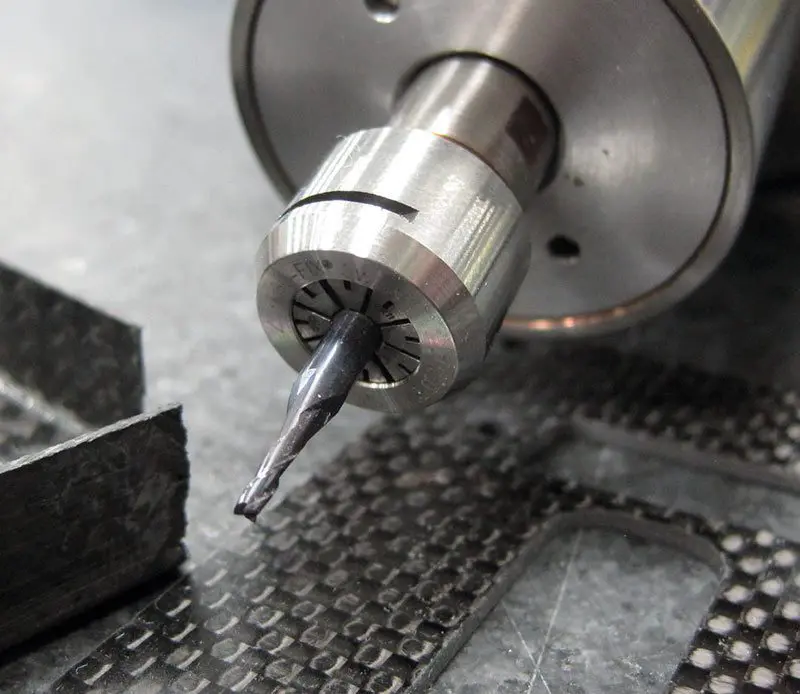

ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor with 1/2” NPT | 30084 |
| Tube 16 mm O.D. - 10 mm I.D. (order by foot) | 16516 |
| Hose & Fitting - 16 mm O.D. - 10 mm I.D. - 12’ | 30047 |
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 63040 | 25,000 | 63041 |
| 30,000 | 63042 | 30,000 | 63043 |
| 40,000 | 63044 | 40,000 | 63045 |
Videos
50,000 RPM CNC Spindle Creates the Perfect Chocolate Mold at HAAS Allendale
Watch Chips Fly with this Air Turbine Tools® CNC Milling Spindle
40,000 RPM CNC Spindle Milling Aluminum on DMC125 U DuoBlock
CNC Milling Spindle Runs at 1850 mm/min with 40,000 RPM
CNC Spindle Milling and Drilling Aluminum at 40,000 rpm on Mikron CNC
5th Axis Cutting at 40,000 RPM / 150IPM on Haas UMC500 by Air Turbine Spindles®
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
