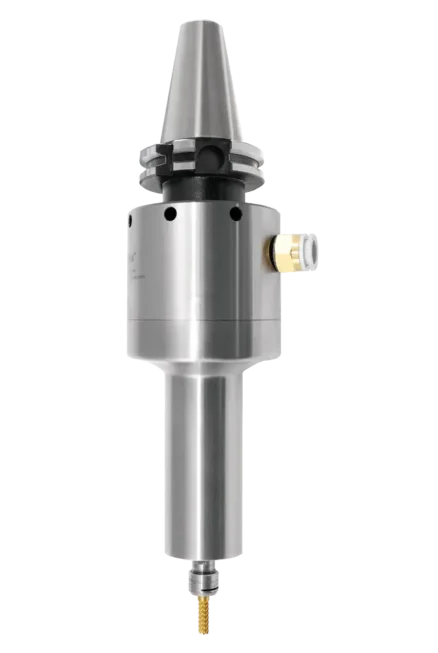

650LDIN40 (100 mm)
650 Extended Barrel CNC Spindle Series
100 mm
The robust, long body 650LDIN40 (100 mm) delivers governed constant high speed and power under load – 25,000 to 40,000 RPM, < 0.88 HP (0.66 kW) with double front ceramic bearings. The 650L (100 mm) Series is ideal for heavier duty applications and milling hard materials in corners in deep pockets. The governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Effective in all materials, including tool steel, titanium, and ceramic. Ultra-low vibration and no heat in 24/7 operation. Selectable rear or side air feed on each spindle. Automatic loading from the magazine on all machines.
| 650LDIN40 (100 mm) Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.8 HP (0.6 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 18 CFM (8.49 L/s) | |
| Air Consumption Working Flow | 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | ||
| Spindle Weight | 141.4 oz (4.01 kg) | ||
| 650LDIN40 (100 mm) Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 0.8 HP (0.6 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| 90 psi (6.2 bar) | ||
| 13 CFM (6.14 L/s) | 18 CFM (8.49 L/s) | |
| 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| 8 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4" (6 mm) | ||
| 141.4 oz (4.01 kg) | ||
Reach into deep pockets with 1.4 HP with the Air Turbine Extended Barrel CNC Spindle Series
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production

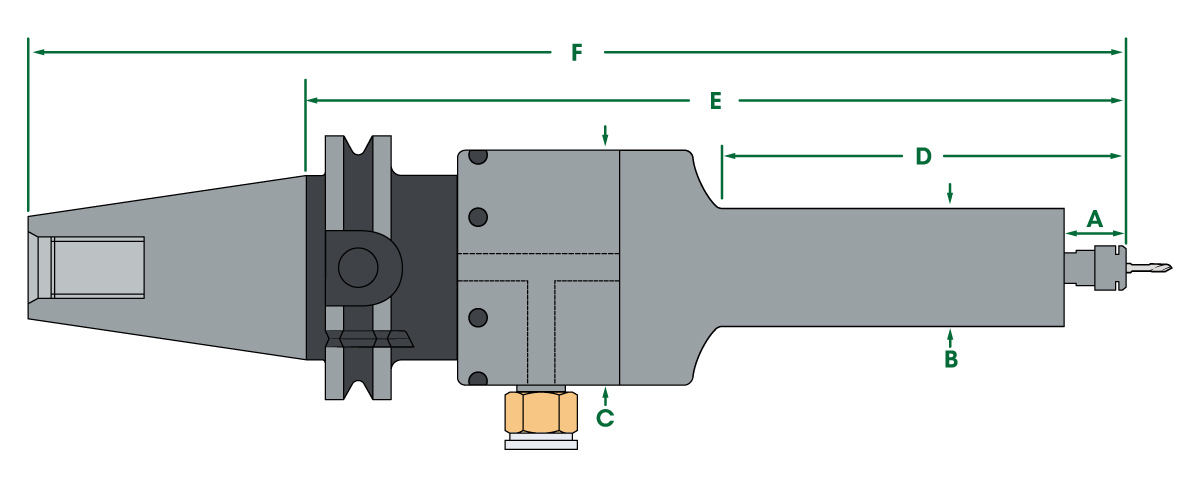

650LDIN40 (100 mm) Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| A | 0.99” (25mm) |
| B | 1.62” (41mm) |
| C | 3.23” (82mm) |
| D | 5.59” (142mm) |
| E | 9.59” (244 mm) |
| F | 12.34” (313mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12mm O.D. - 8mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’ | 30045 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A universal block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles® as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 64936 | 25,000 | 64937 |
| 30,000 | 64938 | 30,000 | 64939 |
| 40,000 | 64940 | 40,000 | 64941 |
Video
Milling Tequila Bottles at 40,000 RPM, 500"/min
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
