650DIN40
650 CNC Spindle Series

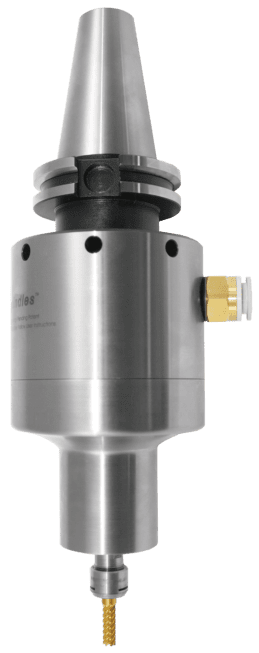

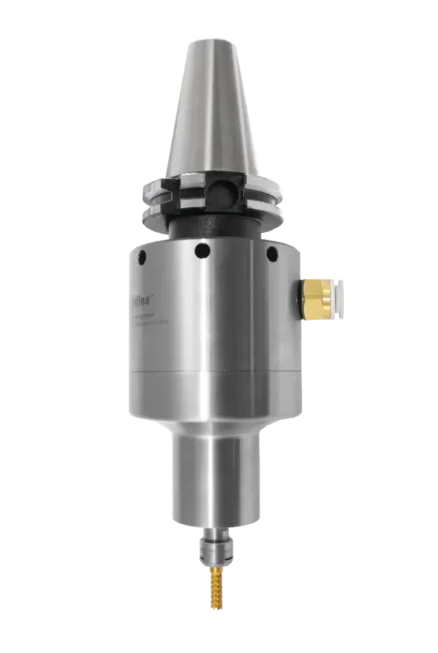

The 650DIN40 delivers governed constant high speeds under load – 25,000 to 40,000 rpm, < 0.88 hp (0.66 kW). Robust and reliable, with double front ceramic bearings, the 650 Series is ideal for heavier duty applications and milling hard materials in corners. The governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Effective in all materials, including tool steel, titanium, and ceramic. Ultra-low vibration and no heat in 24/7 operation. Selectable rear or side air feed on each spindle. Automatic Loading from the magazine on all machines.
| 650DIN40 Specifications | |||
| Speed RPM | 25,000 | 30,000 | 40,000 |
| Power Rating hp (Kw) | 0.8 (0.6) | 0.83 (0.62) | 0.88 (0.66) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle cfm (l/s) | 13 (6.14) | 18 (8.49) | |
| Air Consumption Working Flow (l/s) | 14 (6.61) - 35 (16.52) | ||
| Air Hoses and Fittings Minimum Size | 8mm ID | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER 11 - 1/4” (6mm) | ||
| Spindle Weight | 112.8 oz (3.20 kg) | ||
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production
650DIN40 Dimensions
All fittings, couplings, and hoses must have a minimum of 8mm internal diameter.
| 650DIN40 Dimensions | |
| A | 0.87” (22mm) |
| B | Ø 1.62” (41mm) |
| C | Ø 3.23” (82mm) |
| D | 7.09” (180mm) |
| E | 9.84” (250mm) |
Equipment
Included Equipment
Standard Equipment
ER 11 UP Collet System (1/4” or 6mm collet). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12mm O.D. - 8mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’ | 30045 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11- 1/4" | ER11- 6mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 64162 | 25,000 | 64163 |
| 30,000 | 64164 | 30,000 | 64165 |
| 40,000 | 64166 | 40,000 | 64167 |
Videos
50,000 rpm Creates the Perfect Chocolate Mold at HAAS Allendale
650 at 40,000 rpm with 1mm Endmill
650 Series Milling and Drilling Aluminum at 40,000 rpm on Mikron CNC
Aluminum Slotting at 2000 mm/min on Famup MC120 - 0.88hp
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
