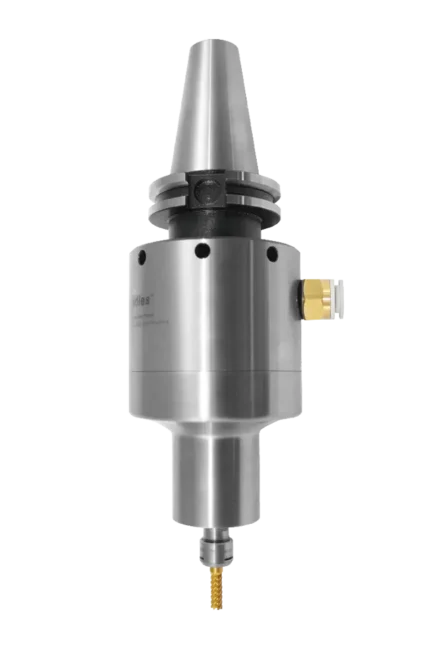

650CAT40
650 CNC Spindle Series
The 650CAT40 delivers governed constant high speeds under load –25,000 to 40,000 RPM, < 0.88 HP (0.66 kW). Robust and reliable, with double front ceramic bearings, the 650 Series is ideal for heavier duty applications and milling hard materials in corners. The governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Effective in all materials, including tool steel, titanium, and ceramic. Ultra-low vibration and no heat in 24/7 operation. Selectable rear or side air feed on each spindle. Automatic loading from the magazine on all machines.
| 650CAT40 Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.8 HP (0.6 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 18 CFM (8.49 L/s) | |
| Air Consumption Working Flow | 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4" (6 mm) | ||
| Spindle Weight | 112.8 oz (3.2 kg) | ||
| 650CAT40 Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 0.8 HP (0.6 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| 90 psi (6.2 bar) | ||
| 13 CFM (6.14 L/s) | 18 CFM (8.49 L/s) | |
| 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
||
| 8 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4" (6 mm) | ||
| 112.8 oz (3.2 kg) | ||
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production
650CAT40 Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 650CAT40 Dimensions | |
| A | 0.84" (21.34 mm) |
| B | Ø 1.62" (41.15 mm) |
| C | Ø 3.23” (82 mm) |
| D | 7.14" (171.36 mm) |
| E | 9.86" (250.44 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12mm O.D. - 8mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’ | 30045 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A universal block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles® as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11- 1/4" | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 64070 | 25,000 | 64071 |
| 30,000 | 64072 | 30,000 | 64073 |
| 40,000 | 64074 | 40,000 | 64075 |
Videos
50,000 RPM CNC Spindle Creates the Perfect Chocolate Mold at HAAS Allendale
Watch Chips Fly with this Air Turbine Tools® CNC Milling Spindle
40,000 RPM CNC Spindle Milling Aluminum on DMC125 U DuoBlock
CNC Milling Spindle Runs at 1850 mm/min with 40,000 RPM
CNC Spindle Milling and Drilling Aluminum at 40,000 rpm on Mikron CNC
5th Axis Cutting at 40,000 RPM / 150IPM on Haas UMC500 by Air Turbine Spindles®
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
