625XVSNS
625X Variable Speed CNC Spindle Series

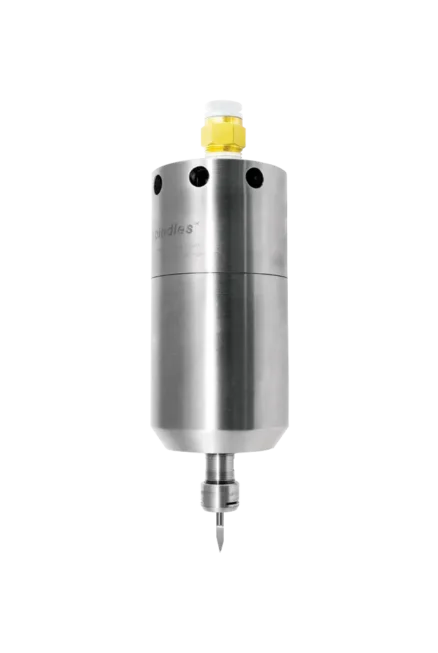

The 625XVSNS produces superb accuracy and fast results. Easily switch between the rated governed speeds of 30,000 RPM with 0.4 HP (0.3 kW) to 50,000 RPM with 0.76 HP (0.57 kW). The 625XVSNS features no shank and air feed from the rear position. Drop-in 57mm fixture ready to mill, finish or drill at high speed. Front ends sealed for wet environments (rear exhaust not sealed). Compact and powerful Air Turbine Spindles® 625 unit delivers patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Fewer moving parts mean less vibration and fewer repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease-packed bearings are durable. Specify angular bearings for drilling. Totally oil-free operation eliminates workpiece contamination and oil lubrication using 90 psi (6.2 bar) dry clean oil-free air.
Easily The Change Speed and Power Rating
Insert a hex key through the air shaft at the back of the spindle and turn the internal flow control screw up or down to switch between single turbine mode and twin turbine mode.
| 625XVSNS Specifications | ||
| Mode | Single Turbine | Twin Turbine |
| Speed | 30,000 RPM | 50,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.76 HP (0.57 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 10.5 CFM (4.9 L/s) | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow | 11 CFM - 30 CFM (5.19 L/s - 14.16 L/s) |
|
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | |
| Spindle Weight | 60 oz (1.7 kg) | |
| 625XVSNS Specifications |
| Mode |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| Single Turbine | Twin Turbine |
| 30,000 RPM | 50,000 RPM |
| 0.4 HP (0.3 kW) | 0.76 HP (0.57 kW) |
| 90 psi (6.2 bar) | |
| 10.5 CFM (4.9 L/s) | 20 CFM (9.44 L/s) |
| 11 CFM - 30 CFM (5.19 L/s - 14.16 L/s) |
|
| 8 mm internal diameter | |
| Less Than 78 dBA | |
| ER11 UP - 1/4” (6 mm) | |
| 60 oz (1.7 kg) | |
Change Speed and Power in a Moment on your CNC Spindle
How do I change the speed?
Our patent-pending system makes it very easy to change speed and power rating in a minute with our patented double turbine. A hex key fits through the air shaft at the back of the spindle. The flow control screw is turned up or down by the hex key to switch speeds, as displayed below in the red and green positions below.
Single Turbine Mode Shown
| 625XVS | Single Turbine Mode | Double Turbine Mode |
| Position in Diagram | Green | Red |
| Power Rating | 0.4 HP (0.3 kW) | 0.76 HP (0.57 kW) |
| Speed | 30,000 RPM | 50,000 RPM |
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
625XVSNS Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 625XVSNS Dimensions | |||
| A | 1.0" (25.4 mm) | C | 5.44" (138.18 mm) |
| B | Ø 2.24" (56.7 mm) | D | 2.5" (63.5 mm) |
| 625XVSNS Dimensions | |
| A | 1.0" (25.4 mm) |
| B | Ø 2.24" (56.7 mm) |
| C | 5.44" (138.18 mm) |
| D | 2.5" (63.5 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12 mm O.D. - 8 mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12 mm O.D. - 8 mm I.D. - 12’ | 30045 |
| ER11- 1/4" | ER11 - 6 mm |
|---|---|
| Part Numbers | Part Numbers |
| 66000 | 66001 |
Videos
M4S Micro Demo - 40,000 RPM, 20 IPM in 45HRc on HAAS
Haas CNC Main Spindle v. The Air Turbine CNC Spindle
CNC Spindle Milling Steel at 5000 mm/min on DMG Mori at 50,000 RPM and 0.76 HP
50,000 RPM CNC Spindle on Hermle Engraves Aluminum Elephant
C/T Reduced by 25 Minutes with 50,000 RPM! Pocketing Brass with Air Turbine CNC Milling Spindles!
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
