625XVSDIN30
625X Variable Speed CNC Spindle Series

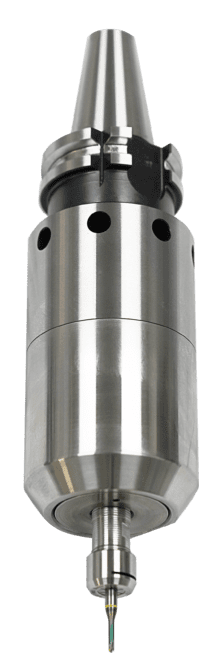

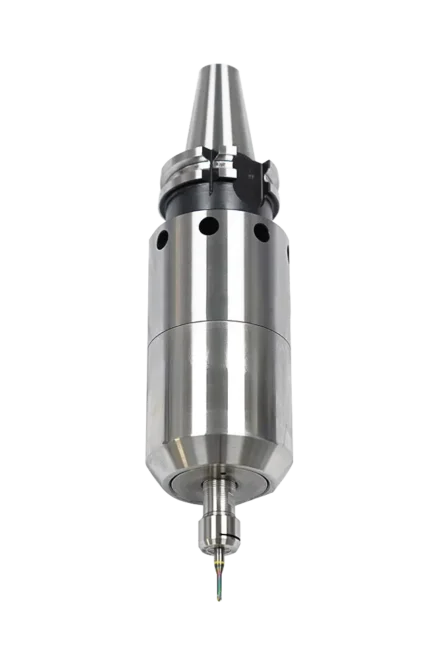

The patented double turbine 625XVSDIN30 delivers constant high speeds and power under load. Easily switch between speeds of 30,000 and 50,000 rpm, with 0.76 hp (0.57 kW) in twin turbine mode. Speed up your cycle times with this compact and powerful spindle. Ideal for contouring, mold making, milling, finishing and drilling with small tools. Direct drive means low heat, no duty cycle and super reliability. Selectable rear or side air feed.
This Flexible Spindle Can Easily Change Speed and Power Ratings
Simply insert a hex key through the air shaft at the back of the spindle and turn the flow control screw up or down to switch speeds.
| 625XVSDIN30 Specifications | |
| Speed RPM | 30,000 - 50,000 |
| Power Rating hp (Kw) | 0.4 (0.3) - 0.76 (0.57) |
| Inlet Air Pressure | 90 psi (6.2 bar) |
| Air Consumption Idle cfm (l/s) | 10.5 (4.9) - 20 (9.44) |
| Air Consumption Working Flow (l/s) | 11 (5.2) - 30 (14.16) |
| Air Hoses and Fittings Minimum Size | 8mm ID |
| Sound Level | Less Than 78 dBA |
| Max Shank Capacity | ER 11 - 1/4” (6mm) |
| Spindle Weight | 96 oz (2.72 kg) |
How do I change the speed?
Our patent-pending system makes it very easy to change speed and power rating in a minute with our patented double turbine. A hex key fits through the air shaft at the back of the spindle. The flow control screw is turned up or down by the hex key to switch speeds, as displayed below in the red and green positions below.
Single Turbine Mode Shown
| 625XVS | Single Turbine Mode | Double Turbine Mode |
| Position in Diagram | Green | Red |
| Power Rating | 0.4 hp (0.3 kW) | 0.76 hp (0.57 kW) |
| Speed | 30,000 RPM | 50,000 RPM |
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

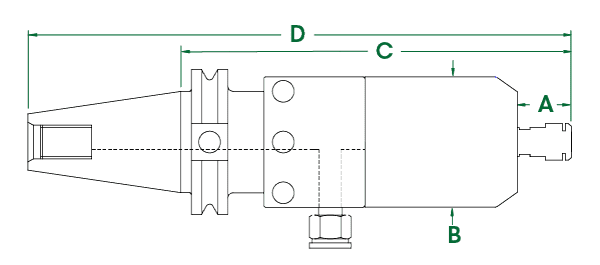

625XVSDIN30 Dimensions
All fittings, couplings, and hoses must have a minimum of 8mm internal diameter.
| 625XVSDIN30 Dimensions | |||
| A | 0.87” (22mm) | C | 7.24” (184mm) |
| B | Ø 2.24” (57mm) | D | 9.8” (249mm) |
| 625XVSDIN30 Dimensions | |
| A | 0.87” (22mm) |
| B | Ø 2.24” (57mm) |
| C | 7.24” (184mm) |
| D | 9.8” (249mm) |
Equipment
Included Equipment
Standard Equipment
ER 11 UP Collet System (1/4” or 6mm). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12 mm O.D. - 8 mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12 mm O.D. - 8 mm I.D. - 12’ | 30045 |
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Drill Tap
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
| ER11- 1/4" | ER11- 6mm |
|---|---|
| Part # | Part # |
| 66012 | 66013 |
Videos
Change Speed and Power in a Moment on your CNC Spindle
M4S Micro Demo - 40,000 RPM, 20 IPM in 45HRc on HAAS
Haas CNC Main Spindle v. The Air Turbine CNC Spindle
CNC Spindle Milling Steel at 5000 mm/min on DMG Mori at 50,000 rpm and 0.76 hp
50,000 RPM CNC Spindle on Hermle Engraves Aluminum Elephant
C/T Reduced by 25 Minutes with 50,000 rpm! Pocketing Brass with Air Turbine CNC Milling Spindles!
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
