625NS
625 CNC Spindle Series

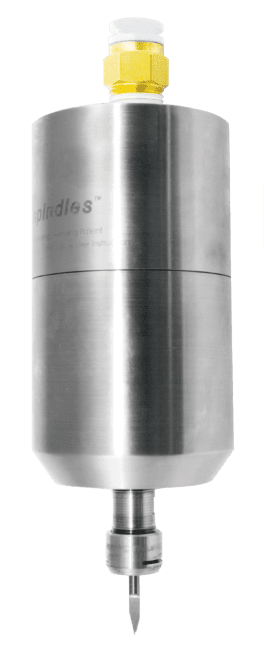

With vibration at just 0.4mm/sec the 625NS produces superb accuracy and fast results. Rated governed speeds available are 30,000, 40,000, 50,000 and 65,000 RPM and the power is 0.55 HP (0.41 kW). The 625NS features no shank, and air feed from rear position. Drop-in the 57 mm fixture ready to mill, finish or drill at high speed. Front ends sealed for wet environments (rear exhaust not sealed). Compact and powerful Air Turbine Spindles® 625 units deliver patented constant governed high speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Fewer moving parts means less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease packed bearings are durable.
Specify angular bearings for drilling.
Totally oil free operation eliminates work piece contamination and oil lubrication using 90 psi (6.2 bar) dry clean oil free air. No Duty Cycle.
| 625NS Specifications | ||||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |||
| Air Consumption Idle | 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | 16 CFM (7.55 L/s) | |
| Air Consumption Working Flow | 11 CFM (5.19 L/s) - 20 CFM (9.44 L/s) | |||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |||
| Sound Level | Less Than 78 dBA | |||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | |||
| Spindle Weight | 35.6 oz (1.29 kg) | |||
| 625NS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| 90 psi (6.2 bar) | |||
| 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | 16 CFM (7.55 L/s) | |
| 11 CFM (5.19 L/s) - 20 CFM (9.44 L/s) | |||
| 6 mm internal diameter | |||
| Less Than 78 dBA | |||
| ER11 UP - 1/4” (6 mm) | |||
| 35.6 oz (1.29 kg) | |||
Retrofit Any CNC with High Speed

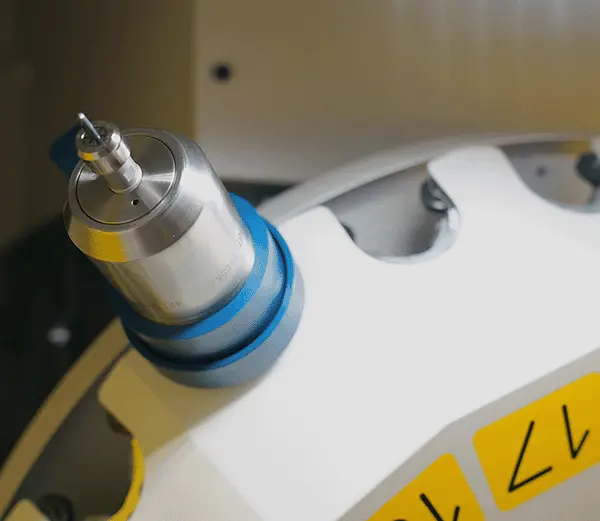

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production

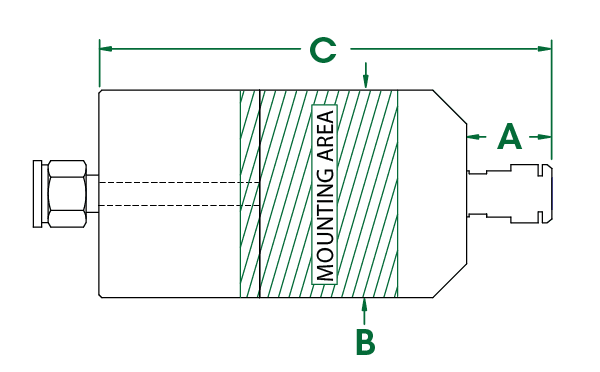

625NS Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 625NS Dimensions | |||
| A | 0.87” (22 mm) | C | 5.12” (130 mm) |
| B | Ø 2.24” (57 mm) | D | 1.75” (44 mm) |
| 625NS Dimensions | |
| A | 0.87” (22 mm) |
| B | Ø 2.24” (57 mm) |
| C | 5.12” (130 mm) |
| D | 1.75” (44 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system (1/4” or 6 mm collet). 3/4” or 20 mm shank standard (Metric shank comes with metric collet, inch shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 10 mm O.D. - 6.5 mm I.D. (order by foot) | 16508 |
| Hose & Fitting - 10 mm O.D. - 6.5 mm I.D. - 12’ | 30043 |
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 64552 | 30,000 | 64553 |
| 40,000 | 64554 | 40,000 | 64555 |
| 50,000 | 64556 | 50,000 | 64557 |
| 65,000 | 65130 | 65,000 | 65131 |
Videos

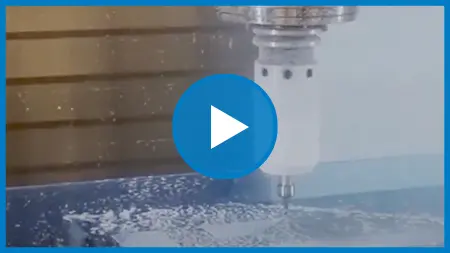

M4S Micro Demo - 40,000 RPM, 20 IPM in 45HRc on HAAS
Haas CNC Main Spindle v. The Air Turbine CNC Spindle

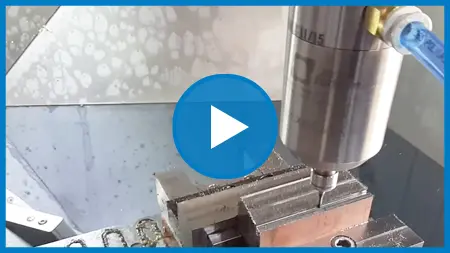

CNC Spindle Milling Steel at 5000 mm/min on DMG Mori at 50,000 rpm and 0.76 hp

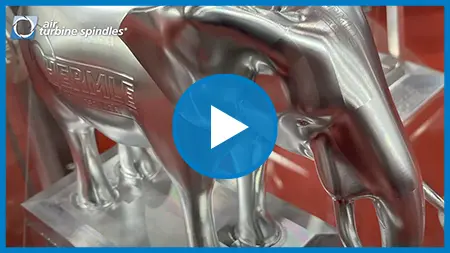

50,000 RPM CNC Spindle on Hermle Engraves Aluminum Elephant

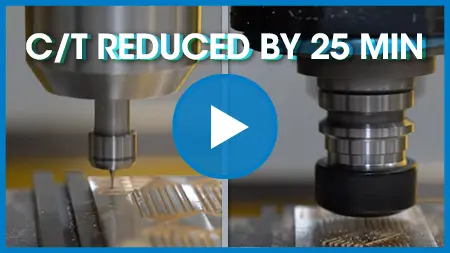

C/T Reduced by 25 Minutes with 50,000 rpm! Pocketing Brass with Air Turbine CNC Milling Spindles!

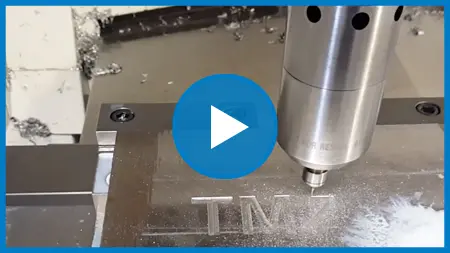

Steel Milling at 2,600 mm/min - Reduce your Cycle Times with the Air Turbine Pneumatic Spindle
Engraving at 65,000 RPM on Haas VF9 CNC by Air Turbine Spindles®
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
