602NS
602 CNC Spindle Series

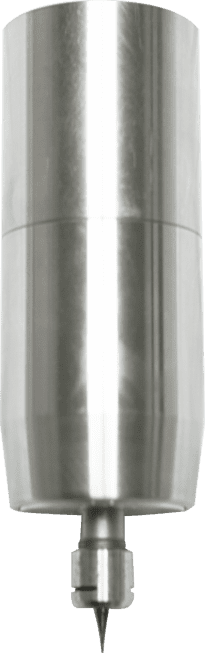

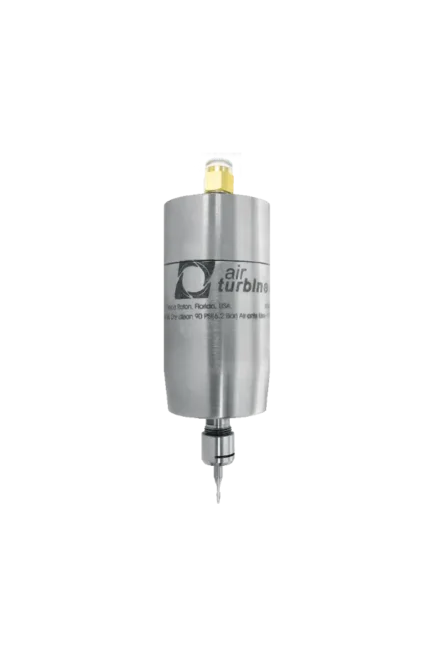

Compact, the 602NS delivers governed constant high speeds under load. Rated speeds are 40,000, 50,000, and 65,000 RPM. Ideal for engraving, marking, slotting, drilling, and finishing with small tools the 602 speeds up cycle times — cutting cost and accelerating production. The 602 NS features no shank and air feed from the rear position.
Air Turbine Spindles® patented motors maintain high speed while cutting with no gears, vanes, or brushes to burn up. Using dry clean, oil-free, 90 psi (6.2 bar) compressed air the 602 requires no lubrication and emits no oil mist. With fewer moving parts and low friction and utilizing ceramic bearings, the 602 is a precise and reliable favorite. No duty cycle.
| 602NS Specifications | |||
| Speed | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 4.5 CFM (2.1 L/s) | ||
| Air Consumption Working Flow | 5 CFM - 6 CFM (2.36 L/s - 2.83 L/s) |
||
| Air Hoses and Fittings Minimum Size | 4 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER8 UP - 1/8" (3 mm) | ||
| Spindle Weight | 21.6 oz (0.61 kg) | ||
| 602NS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | 0.2 HP (0.15 kW) |
| 90 psi (6.2 bar) | ||
| 4.5 CFM (2.1 L/s) | ||
| 5 CFM - 6 CFM (2.36 L/s - 2.83 L/s) |
||
| 4 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER8 UP - 1/8" (3 mm) | ||
| 21.6 oz (0.61kg) | ||
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

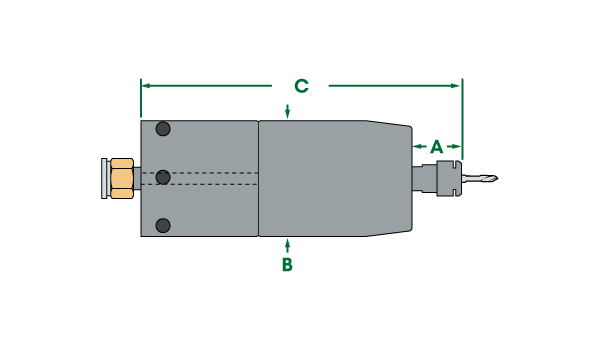

602NS Dimensions
All fittings, couplings, and hoses must have a minimum of 4 mm internal diameter.
| 602NS Dimensions | |
| A | 0.6875" (17.4 mm) |
| B | 1.56” (40 mm) |
| C | 4.5” (114.3 mm) |
Equipment
Included Equipment
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 10 mm O.D. - 6.5 mm I.D. (order by foot) | 16508 |
| Hose & Fitting - 10 mm O.D. - 6.5mm I.D. - 12’ | 30043 |
| ER8- 1/8" | ER8- 3mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 65500 | 40,000 | 65501 |
| 50,000 | 65502 | 50,000 | 65503 |
| 65,000 | 65504 | 65,000 | 65505 |
