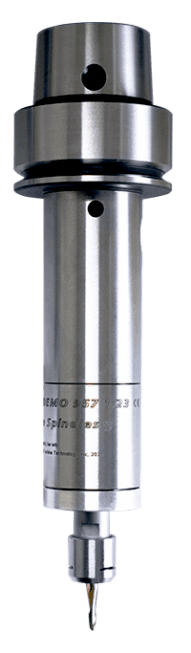

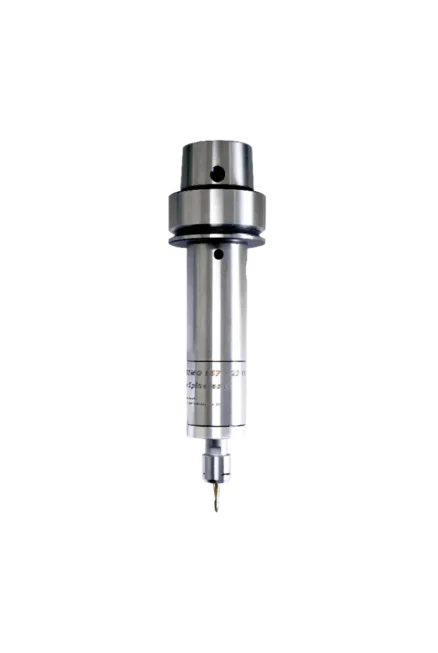

600XHSK-E40
600X Mini CNC Spindle Series
The compact double turbine 600X spindle operates at governed 65,000 rpm or 80,000 rpm. Air Turbine Spindles® patented governor increases air flow volume to match cutting load maintaining rated high speed in cut. The 600X’s low air flow requirement facilitates through spindle air supply on any CNC. Now you get the required high SFM for small tools and 6-10x faster cycles. The miniature profile makes programming easy and fits Bumotec and Chiron machines.
The 600X’s constant high speed optimizes your tool performance, reducing breakages on micro tools. Using only 5 cfm / 2.3 liters per second airflow the 600X series minimizes air consumption.
Our direct drive has only 2 moving parts – operating with no heat and zero thermal effects on accuracy. 2 micron, precision is certified assuring ultra precision. For improved micro tool performance and productivity add the 600X to your CNC magazine. All you need is a 90 PSI, 6.2 Bar dry air through your machine spindle.
| 600XHSK-E40 Specifications | ||
| Speed RPM | 65,000 | 80,000 |
| Power Rating hp (Kw) | 0.15 (0.11) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle cfm (l/s) | 3.5 | |
| Air Consumption Working Flow (l/s) | 5 | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER 8-1/8"(3mm) | |
| Spindle Weight | 13.6 oz (0.385 kg) | |
These Micro High Speed Spindles Cut Cycle Times and Reduce Wear and Tear on the Main Spindle
Drastically Reduce Cycle Times in Finishing Operations
►
►
►
►
►
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
600XHSK-E40 Dimensions
All fittings, couplings, and hoses must have a minimum of 4mm internal diameter.
| 600XHSK-E40 Dimensions | |
| A | 0.68”(17mm) |
| B | 0.98”(25mm) |
| C | 4.55”(115mm) |
| D | 5.34(135mm) |
Equipment
Included Equipment
Standard Equipment
ER 8 UP collet system (1/8” or 3mm collet standard – other sizes optional). Oil free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter / Regulator Extractor | 30006 |
| Tube 6mm O.D. - 4mm I.D. (order by foot) | 16508 |
| Hose & Fitting - 6mm O.D. - 4mm I.D. - 12’ | 30043 |
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
| ER8- 1/8" | ER8- 3mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 65,000 | 60004 | 65,000 | 60013 |
| 80,000 | 60014 | 80,000 | 60015 |
Video
Make Programming Easy with the compact 600X CNC Spindle Series
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
