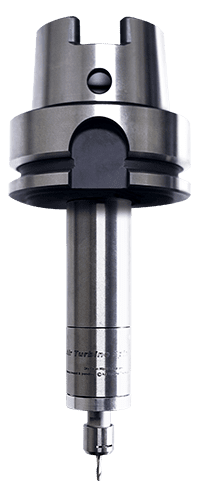

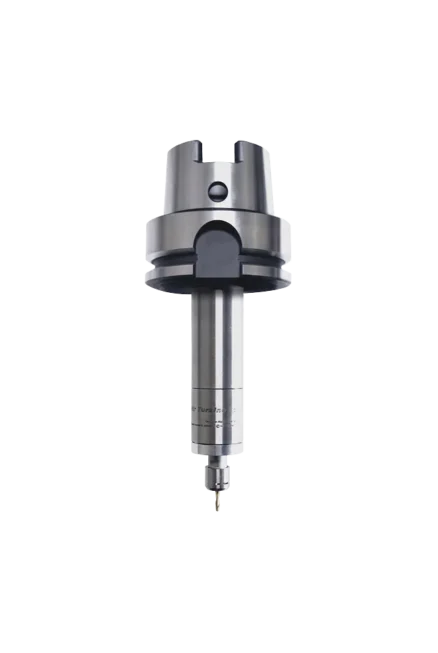

600XHSK-A63
600X Mini CNC Spindle Series
The compact double turbine 600XHSK-A63 spindle operates at governed 65,000 RPM or 80,000 RPM. Air Turbine Spindles® patented governor increases air flow volume to match cutting load, maintaining rated high speed in cut. The 600X’s low air flow requirement facilitates through spindle air supply on any CNC. Now you get the required high SFM for small tools and 6-10x faster cycles. The miniature profile makes programming easy and fits Bumotec and Chiron machines.
The 600X’s constant high speed optimizes your tool performance, reducing breakages on micro tools. Using only 5 CFM (2.36 L/s) airflow, the 600X series minimizes air consumption.
Our direct drive has only 2 moving parts – operating with no heat and zero thermal effects on accuracy. 2 micron precision is certified, assuring ultra precision. For improved micro tool performance and productivity, add the 600X to your CNC magazine. All you need is a 90 psi (6.2 bar) dry air supply through your machine spindle.
| 600XHSK-A63 Specifications | ||
| Speed | 65,000 RPM | 80,000 RPM |
| Power Rating | 0.15 HP (0.11 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 3.5 CFM (1.65 L/s) | |
| Air Consumption Working Flow | 5 CFM (2.36 L/s) | |
| Sound Level | Less Than 78 dBA | |
| Air Hoses and Fittings Minimum Size | 4 mm internal diameter | |
| Max Shank Capacity | ER8 UP - 1/8” (3 mm) | |
| 600XHSK-A63 Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Sound Level |
| Air Hoses and Fittings Minimum Size |
| Max Shank Capacity |
| 65,000 RPM | 80,000 RPM |
| 0.15 HP (0.11 kW) | |
| 90 psi (6.2 bar) | |
| 3.5 CFM (1.65 L/s) | |
| 5 CFM (2.36 L/s) | |
| Less Than 78 dBA | |
| 4 mm internal diameter | |
| ER8 UP - 1/8” (3 mm) | |
These Micro High Speed Spindles Cut Cycle Times and Reduce Wear and Tear on the Main Spindle blue
Drastically Reduce Cycle Times in Finishing Operations
►
►
►
►
►
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed

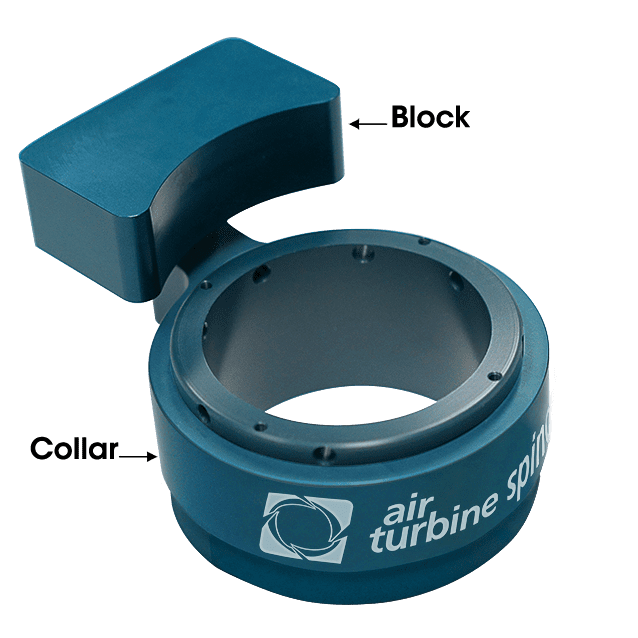

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
600XHSK-A63 Dimensions
All fittings, couplings, and hoses must have a minimum of 4 mm internal diameter.
| 600XHSK-A63 Dimensions | |||
| A | 0.68” (17.27 mm) | C | 4.79" (121.66 mm) |
| B | Ø 0.98" (24.89 mm) | D | 6.05"(153.67 mm) |
| 600XHSK-A63 Dimensions | |
| A | 0.68” (17.27 mm) |
| B | Ø 0.98" (24.89 mm) |
| C | 4.79" (121.66 mm) |
| D | 6.05"(153.67 mm) |
Equipment
Included Equipment
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter / Regulator Extractor | 30006 |
| Tube 6 mm O.D. - 4 mm I.D. (order by foot) | 16520 |
| Hose & Fitting - 8 mm O.D. - 5 mm I.D. - 12’ | 30041 |
| ER8- 1/8" | ER8- 3mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 65,000 | 60000 | 65,000 | 60001 |
| 80,000 | 60002 | 80,000 | 60003 |
Video
Make Programming Easy with the compact 600X CNC Spindle Series
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
