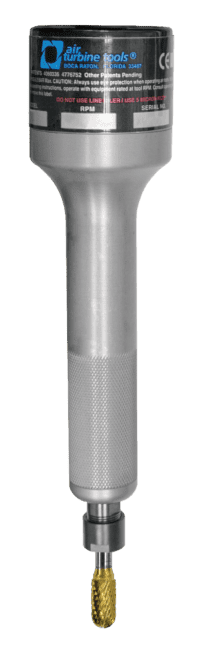

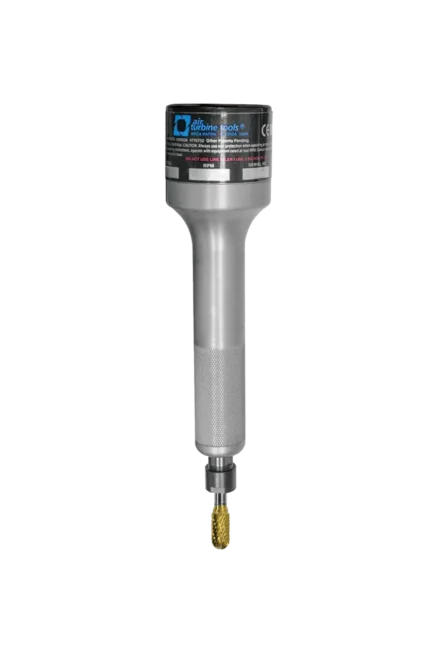

525SV
Straight Hand Tool Series
1/4” / 6 mm Capacity
Revolutionary comfort and superior surface quality with high speed. Plenty of power for deburring, part cleaning, deflashing, or weld removal. Constant governed high speed does the cutting, not operator pressure. Eliminate heat, stress, and injury risk and end daily maintenance costs.
Just guide the 525SV with its low vibration and weight. The patented automatic brake option stops this tool in a few seconds.
Optional dead man’s trigger switch for quick-shut off available with the 525DM.
| 525SV Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 12 CFM (5.66 L/s) | 16 CFM (7.55 L/s) |
| Air Consumption Working Flow | 12 CFM - 20 CFM (3.3 L/s - 4.27 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 14.5 oz (0.41 kg) | |
| 525SV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| 90 psi (6.2 bar) | |
| 12 CFM (5.66 L/s) | 16 CFM (7.55 L/s) |
| 12 CFM - 20 CFM (3.3 L/s - 4.27 L/s) |
|
| 6 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 14.5 oz (0.41 kg) | |
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 525SV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 23 hours, 32 minutes |
| Time to reach ELV 5 m/s² A(8) | 94 hours, 6 minutes |
| Vibration magnitude m/s² r.m.s | 1.46 |
525SV Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 525SV Dimensions | |||
| A | 0.86” (21.84 mm) | D | 4.97” (126.24 mm) |
| B | 1.0” (25.4 mm) | E | 5.64” (143.26 mm) |
| C | 2.0” (50.8 mm) | F | 8.37” (212.6 mm) |
| 525SV Dimensions | |
| A | 0.86” (21.84 mm) |
| B | 1.0” (25.4 mm) |
| C | 2.0” (50.8 mm) |
| D | 4.97” (126.24 mm) |
| E | 5.64” (143.26 mm) |
| F | 8.37” (212.6 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32207 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 32530 | 30,000 | 32531 |
| 40,000 | 32540 | 40,000 | 32541 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 32534 | 30,000 | 32535 |
| 40,000 | 32544 | 40,000 | 32545 |
