450HDE
Heavy Duty Motor Mount Series

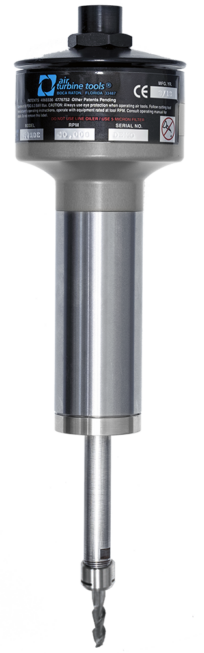

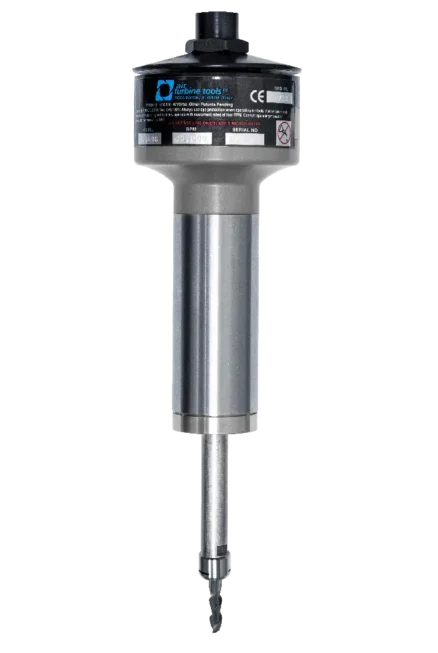

The 450HDE reaches into pockets and angles, ideal for cutting or finishing hard to reach work areas. The 450HDE’s sealed front-end prevents wet or dust contamination from getting inside the motor. This patented motor operates at governed speeds of 25,000, 30,000 or 40,000 RPM with power to 0.88 HP (0.66 kW). Ideal for routing composites, plastics or wood and deburring, finishing or drilling metal at constant high speed. The rigid Ø 41 mm O.D. steel barrel is easily fixtured for automation or combined with an end effector.
Mountable area of Ø 41.15 mm OD by 63.5 mm. Ceramic and angular contact bearing options available.
| 450HDE Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.76 HP(0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow | 14 CFM (6.61 L/s) - 35 CFM (16.52 L/s) | ||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 - 1/4” (6 mm) | ||
| Motor Weight | 46 oz (1.3 kg) | ||
| 450HDE Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 0.76 HP(0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| 90 psi (6.2 bar) | ||
| 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| 14 CFM (6.61 L/s) - 35 CFM (16.52 L/s) | ||
| 8 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 - 1/4” (6 mm) | ||
| 46 oz (1.3 kg) | ||
Accelerate feed rates at 25,000 - 65,000 rpm Power to 1.40 hp

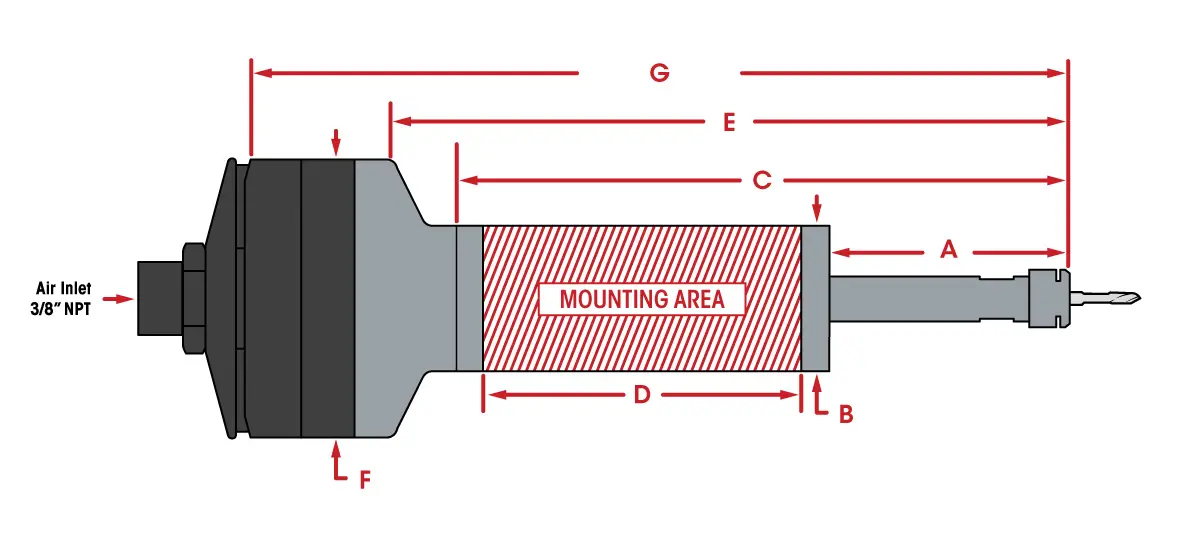

450HDE Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 450HDE Dimensions | |||||
| A | 2.5” (63.5 mm) | D | 2.5” (63.5 mm) | F | Ø 3.1” (79.74 mm) |
| B | Ø 1.62” (41.14 mm) | ||||
| E | 7.48” (189.99 mm) | G | 9.06” (230.12 mm) | ||
| C | 6.75” (171.45 mm) | ||||
| 450HDE Dimensions | |
| A | 2.5” (63.5 mm) |
| B | Ø 1.62” (41.14 mm) |
| C | 6.75” (171.45 mm) |
| D | 2.5” (63.5 mm) |
| E | 7.48” (189.99 mm) |
| F | Ø 3.1” (79.74 mm) |
| G | 9.06” (230.12 mm) |
Equipment
Included Equipment
► 450HDE Motor
► ER11 Collet System (1/4” or 6 mm)
► Collet Wrenches
► 3/8” NPT Air Supply Fitting
Standard Equipment
ER11 collet system (1/4” or 6 mm collet).
Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter Regulator Extractor | 30008 |
| 6’ Air Supply Assembly w/Fitting | 30012 |
| ER11 - 1/4” | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 34480 | 25,000 | 34481 |
| 30,000 | 34482 | 30,000 | 34483 |
| 40,000 | 34484 | 40,000 | 34485 |
