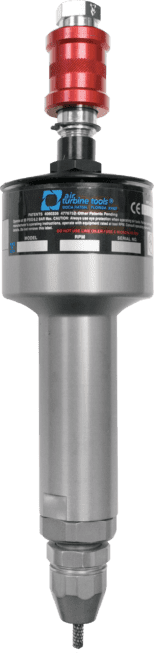

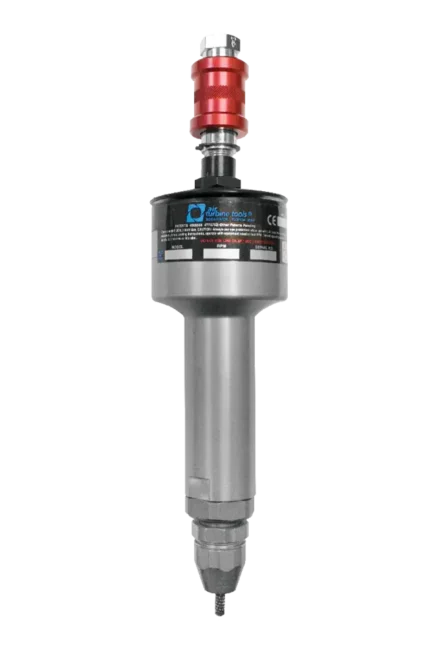

310RXSV
Router Hand Tool Series
1/4” / 6mm Capacity
Incredible Double Turbine Power – to 1.40 hp (1.04 kW). Composites, plastics, and alloys can be routed faster and cleaner at 40,000 rpm with finer surface quality and less fiber break-out with the 310RXSV with slide valve control. The oil-free patented mechanism results in no oil misting and no part contamination. The 310RXSV is a powerful direct-drive turbine with only 2 moving parts: the result is low vibration, no heat, and great durability.
| 310RXSV Specifications | |||
| Speed RPM | 25,000 | 30,000 | 40,000 |
| Power Rating hp (Kw) | 1.2 (0.90) | 1.3 (0.98) | 1.4 (1.04) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle cfm (l/s) | 16 (7.55) | 20 (9.44) | 30 (14.16) |
| Air Consumption Working Flow (l/s) | 19 (8.97) - 40 (18.89) | ||
| Air Hoses and Fittings Minimum Size | 10mm ID | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4” (6mm) | ||
| Hand Tool Weight | 41.4oz (1.17kg) | ||
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 310RXSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 345 hours, 40 minutes |
| Time to reach ELV 5 m/s² A(8) | 1382 hours, 37 minutes |
| Vibration magnitude m/s² r.m.s | 0.38 |
310RXSV Dimensions
All fittings, couplings, and hoses must have a minimum of 10mm internal diameter.
| 310RXSV Dimensions | |||
| A | MIN: 1.50” (38.10mm) MAX: 1.63” (41.40mm) |
||
| B | 1.19” (30.23mm) | E | 4.01” (101.85mm) |
| C | 1.62” (41.15mm) | F | 5.04” (128.02mm) |
| D | 3.10” (78.74mm) | G | 10.94” (277.88mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6mm collet standard – other sizes optional. Oil-free 90 psi (6.2 bar), clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter Regulator Extractor with 1/2” NPT | 30084 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 43420 | 25,000 | 43421 |
| 30,000 | 43430 | 30,000 | 43431 |
| 40,000 | 43440 | 40,000 | 43441 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 43424 | 25,000 | 43425 |
| 30,000 | 43434 | 30,000 | 43435 |
| 40,000 | 43444 | 40,000 | 43445 |
