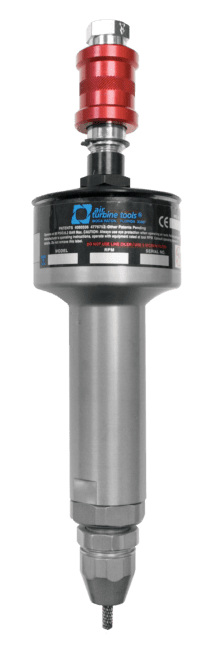

310RSV
Router Hand Tool Series
1/4” / 6 mm Capacity
Control and Power – to 0.88 HP. For high-speed routing. Wood, plastics, and fiberglass are cut faster and cleaner at governed 40,000 RPM with less fiber break-out with the 310RSV. An oil-free mechanism results in no oil misting and no part contamination. The 310RSV with slide valve control is a light powerful direct-drive turbine with only 2 moving parts – resulting in great reliability. A further advantage of the 310RSV is the tool’s low vibration magnitude (just 0.38 mm/s2) and no heat – both improving operator comfort and reducing RSI risk.
| 310RSV Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.76 HP (0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow | 15 CFM - 35 CFM (7.08 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4” (6 mm) | ||
| Hand Tool Weight | 39.7 oz (1.12 kg) | ||
| 310RSV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 0.76 HP (0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| 90 psi (6.2 bar) | ||
| 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| 15 CFM - 35 CFM (7.08 L/s - 16.52 L/s) |
||
| 8 mm internal diameter | ||
| Less Than 67 dBA | ||
| 1/4” (6 mm) | ||
| 39.7 oz (1.12 kg) | ||
These Air Tools Cut Steel and Stress
| 310RSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 345 hours, 40 minutes |
| Time to reach ELV 5 m/s² A(8) | 1382 hours, 37 minutes |
| Vibration magnitude m/s² r.m.s | 0.38 |
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
310RSV Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 310RSV Dimensions | |||
| A | MIN: 1.5” (38.1 mm) MAX: 1.63” (41.4 mm) |
||
| B | 1.19” (30.23 mm) | E | 4.01” (101.85 mm) |
| C | 1.62” (41.15 mm) | F | 5.04” (128.02 mm) |
| D | 3.1” (78.74 mm) | G | 10.44” (265.18 mm) |
| 310RSV Dimensions | |
| A | MIN: 1.5” (38.1 mm) MAX: 1.63” (41.4 mm) |
| B | 1.19” (30.23 mm) |
| C | 1.62” (41.15 mm) |
| D | 3.1” (78.74 mm) |
| E | 4.01” (101.85 mm) |
| F | 5.04” (128.02 mm) |
| G | 10.44” (265.18 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter Regulator Extractor with 1/2” NPT | 30084 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 33420 | 25,000 | 33421 |
| 30,000 | 33430 | 30,000 | 33431 |
| 40,000 | 33440 | 40,000 | 33441 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 33424 | 25,000 | 33425 |
| 30,000 | 33434 | 30,000 | 33435 |
| 40,000 | 33444 | 40,000 | 33445 |
