2590SVF
Angle Hand Tool Series
1/4” / 6 mm Capacity

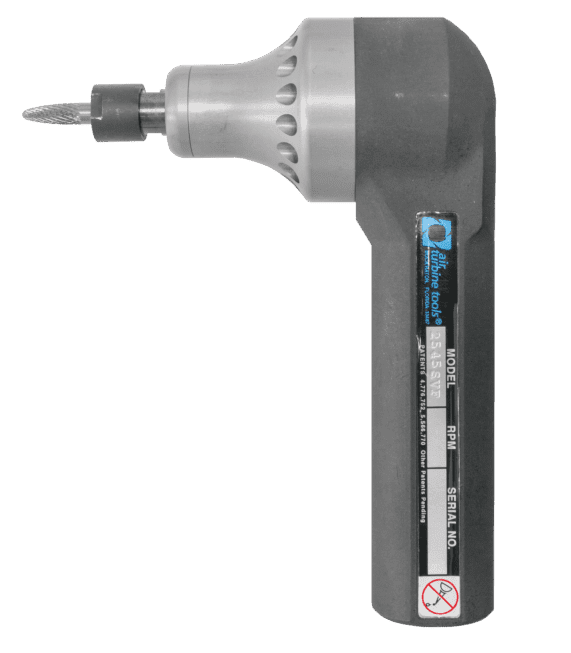

The patented 90° 2590SVF angle tool with slide valve control and front exhaust is designed with the turbine in its angle head and no gears. This design results in lightweight with no heat and low vibration. Excellent for deburring and finishing. The high rotational speed is maintained by our patented governed turbines so you simply guide the 2590SVF letting speed do the work with just a light hand. Just 2 moving parts in this tool for super reliability and the 2590SVF is both maintenance-free and totally oil-free. Select governed 30,000 or 40,000 RPM. Optional trigger switch for quick-shut off available.
Optional dead man’s trigger switch for quick-shut off available with the 2590DM.
| 2590SVF Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) |
| Air Consumption Working Flow | 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 18 oz (0.5 kg) | |
| 2590SVF Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| 90 psi (6.2 bar) | |
| 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) |
| 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|
| 6 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 18 oz (0.5 kg) | |
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 2590SVF Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 64 hours, 11 minutes |
| Time to reach ELV 5 m/s² A(8) | 256 hours, 41 minutes |
| Vibration magnitude m/s² r.m.s | 0.88 |
2590SVF Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 2590SVF Dimensions | |||
| A | 0.86” (21.84 mm) | D | 1.37” (34.8 mm) |
| B | 1.0” (25.4 mm) | E | 4.0” (101.6 mm) |
| C | 2.9” (73.66 mm) | F | 6.49” (164.85 mm) |
| 2590SVF Dimensions | |
| A | 0.86” (21.84 mm) |
| B | 1.0” (25.4 mm) |
| C | 2.9” (73.66 mm) |
| D | 1.37” (34.8 mm) |
| E | 4.0” (101.6 mm) |
| F | 6.49” (164.85 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 34207 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 35832 | 30,000 | 35833 |
| 40,000 | 35842 | 40,000 | 35843 |
