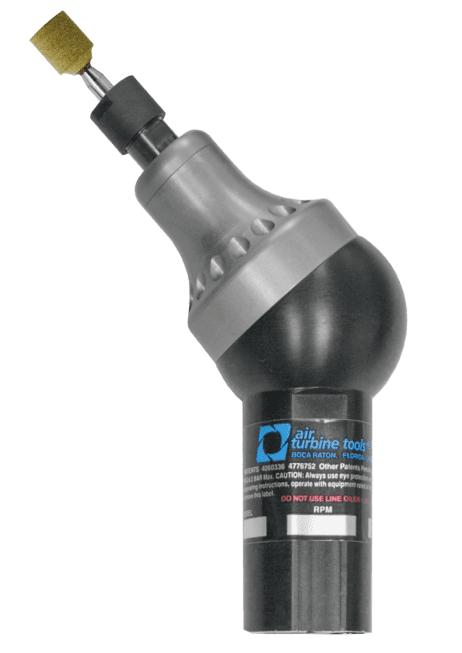

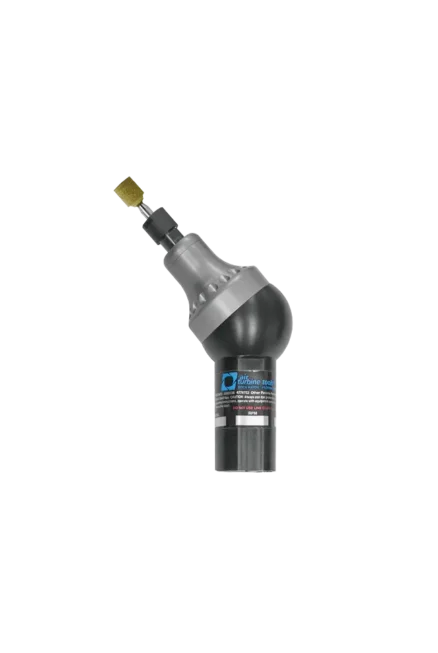

2545SSVF
Angle Hand Tool Series
1/4” / 6 mm Capacity
Differences you will feel immediately: Speed does the cutting with low stress. The patented 45° 2545SSVF angle tool with slide valve control and front exhaust is designed with the turbine in its angle head and no gears. Lightweight with low vibration provides superior comfort. Just 2 moving parts for superior reliability with our totally oil-free and maintenance-free mechanism. Select governed 30,000 or 40,000 RPM for deburring and weld removal.
| 2545SSVF Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) |
| Air Consumption Working Flow | 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 15.2 oz (0.43 kg) | |
| 2545SSVF Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) |
| 90 psi (6.2 bar) | |
| 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) |
| 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|
| 6 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 15.2 oz (0.43 kg) | |
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 2545SSVF Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 64 hours, 11 minutes |
| Time to reach ELV 5 m/s² A(8) | 256 hours, 41 minutes |
| Vibration magnitude m/s² r.m.s | 0.88 |
2545SSVF Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 2545SSVF Dimensions | |||
| A | 0.86” (21.84 mm) | D | 1.37” (34.8 mm) |
| B | 1.0” (25.4 mm) | E | 2.28” (57.91 mm) |
| C | 4.13” (104.9 mm) | F | 5.22” (132.59 mm) |
| 2545SSVF Dimensions | |
| A | 0.86” (21.84 mm) |
| B | 1.0” (25.4 mm) |
| C | 4.13” (104.9 mm) |
| D | 1.37” (34.8 mm) |
| E | 2.28” (57.91 mm) |
| F | 5.22” (132.59 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 34207 |
| 1/4″ | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 35546 | 30,000 | 35547 |
| 40,000 | 35548 | 40,000 | 35549 |
