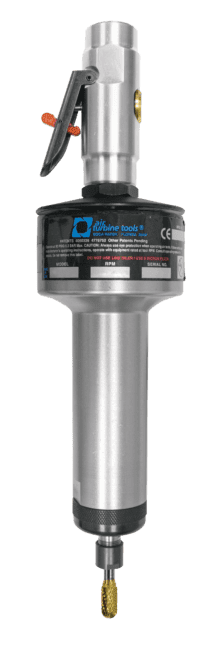

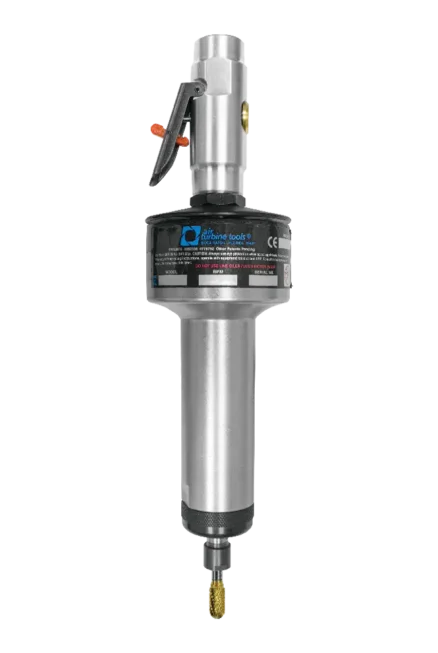

230DM
Straight Hand Tool Series
1/4” / 6 mm Capacity
Almost silent, this light tool shows the power and superiority of the governed turbine. The 230DM incorporates heavy-duty bearings and has collet capacities of 1/4” or 6 mm. For use in heavy-duty applications where hard use is expected for graphite finishing or Kevlar cutting, die polishing, removing welds, or foundry work.
The 230DM will perform heavy material removal tasks reliably, faster, cleaner. Reduced fatigue, hand-arm stress, and carpal tunnel injury risk. The 230DM has a trigger switch for quick, easy shut-off.
| 230DM Specifications | |||
| Speed | 25,000 RPM | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.76 HP (0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow | 15 CFM - 35 CFM (7.08 L/s - 16.52 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4” (6 mm) | ||
| Hand Tool Weight | 37.3 oz (1.06 kg) | ||
| 230DM Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 25,000 RPM | 30,000 RPM | 40,000 RPM |
| 0.76 HP (0.57 kW) | 0.83 HP (0.62 kW) | 0.88 HP (0.66 kW) |
| 90 psi (6.2 bar) | ||
| 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| 15 CFM - 35 CFM (7.08 L/s - 16.52 L/s) |
||
| 8 mm internal diameter | ||
| Less Than 67 dBA | ||
| 1/4” (6 mm) | ||
| 37.3 oz (1.06 kg) | ||
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 230DM Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 345 hours, 40 minutes |
| Time to reach ELV 5 m/s² A(8) | 1382 hours, 37 minutes |
| Vibration magnitude m/s² r.m.s | 0.38 |

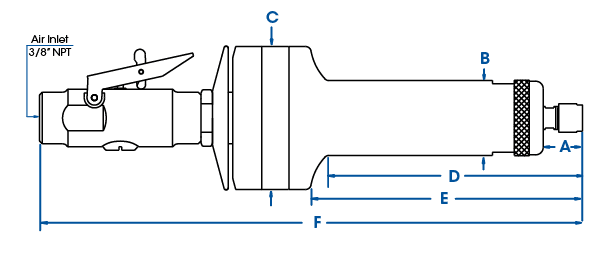

230DM Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 230DM Dimensions | |||
| A | 0.86” (21.84 mm) | D | 5.5” (139.70 mm) |
| B | 1.62” (41.15 mm) | E | 5.9” (149.92 mm) |
| C | 3.1” (78.68 mm) | F | 11.7” (297.18 mm) |
| 230DM Dimensions | |
| A | 0.86” (21.84 mm) |
| B | 1.62” (41.15 mm) |
| C | 3.1” (78.68 mm) |
| D | 5.5” (139.70 mm) |
| E | 5.9” (149.92 mm) |
| F | 11.7” (297.18 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 6’ Air Supply Assembly w/Fitting for DM Models | 30012 |
| 12’ Air Supply Assembly w/Fitting for DM Models | 30013 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 32722 | 25,000 | 32723 |
| 30,000 | 32732 | 30,000 | 32733 |
| 40,000 | 32742 | 40,000 | 32743 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 25,000 | 32728 | 25,000 | 32729 |
| 30,000 | 32738 | 30,000 | 32739 |
| 40,000 | 32748 | 40,000 | 32749 |
