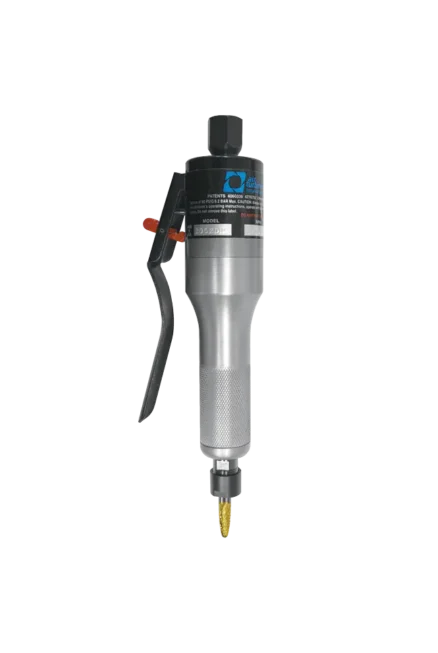

206XDM
Straight Hand Tool Series
1/4” / 6 mm Capacity
Light and Quiet with ultra-low vibration magnitude at 1.43 m/s2 r.m.s. Now you can replace your heavy noisy vibrating tools requiring lubrication and maintenance. At 0.4 HP (0.3 kW) our patented double turbine 206XDM with trigger switch for quick-shut off punches way above its weight of 14.25 oz (0.4 kg).
Work with governed high speed which stays near rated speed under load at constant 50,000 RPM. You will get superb surface quality and virtually no stress or noise. Try this tool – it transforms the operator’s experience.
| 206XDM Specifications | ||
| Speed | 40,000 RPM | 50,000 RPM |
| Power Rating | 0.3 HP (0.22 kW) | 0.4 HP (0.3 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 6 CFM (2.83 L/s) | |
| Air Consumption Working Flow | 7 CFM - 10 CFM (3.3 L/s - 4.27 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 14.25 oz (0.4 kg) | |
| 206XDM Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 40,000 RPM | 50,000 RPM |
| 0.3 HP (0.22 kW) | 0.4 HP (0.3 kW) |
| 90 psi (6.2 bar) | |
| 6 CFM (2.83 L/s) | |
| 7 CFM - 10 CFM (3.3 L/s - 4.27 L/s) |
|
| 6 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 14.25 oz (0.4 kg) | |
These Air Tools Cut Steel and Stress
| 206XDM Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 24 hours, 28 minutes |
| Time to reach ELV 5 m/s² A(8) | 97 hours, 51 minutes |
| Vibration magnitude m/s² r.m.s | 1.43 |
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
206XDM Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 206XDM Dimensions | |||
| A | 1.04” (26.37 mm) | D | 3.38” (85.87 mm) |
| B | 1.0” (25.4 mm) | E | 4.29” (108.87 mm) |
| C | 1.5” (38.1 mm) | F | 6.73” (171.02 mm) |
| 206XDM Dimensions | |
| A | 1.04” (26.37 mm) |
| B | 1.0” (25.4 mm) |
| C | 1.5” (38.1 mm) |
| D | 3.38” (85.87 mm) |
| E | 4.29” (108.87 mm) |
| F | 6.73” (171.02 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for DM Models | 30010 |
| 8’ Air Supply Assembly w/Fitting for DM Models | 30011 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 42976 | 40,000 | 42982 |
| 50,000 | 42977 | 50,000 | 42983 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 42979 | 40,000 | 42985 |
| 50,000 | 42980 | 50,000 | 42986 |
