202SV
Straight Hand Tool Series
1/8” / 3 mm Capacity
Reduce hand-arm stress and injury risk while increasing productivity – Impossible? Not at all. Combining safety in its low vibration and high power the 6 oz (0.17 kg) 202SV with slide valve for quick-shut off can’t be matched for its power to weight ratio – just try it! At 0.55 HP (0.41 kW) the 202SV has an awesome power output from its large diameter turbine. The narrow shaft gives you exact control of that power for precision work. The vibration on the 202SV is so low it’s rated for nonstop work: 34 hours 44 minutes before reaching EAV 2.5 mm/s2 (A8), or 138 hours 55 minutes before reaching ELV 5 m/s2 (A8). Optional trigger switch for quick-shut off available.
| 202SV Specifications | ||||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |||
| Air Consumption Idle | 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow | 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |||
| Sound Level | Less Than 67 dBA | |||
| Max Shank Capacity | 1/8" (3 mm) | |||
| Hand Tool Weight | 8 oz (0.23 kg) | |||
| 202SV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| 90 psi (6.2 bar) | |||
| 10 CFM (4.72 L/s) | 13 CFM (6.14 L/s) | 14 CFM (6.61 L/s) | |
| 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) |
|||
| 6 mm internal diameter | |||
| Less Than 67 dBA | |||
| 1/8" (3 mm) | |||
| 8 oz (0.23 kg) | |||

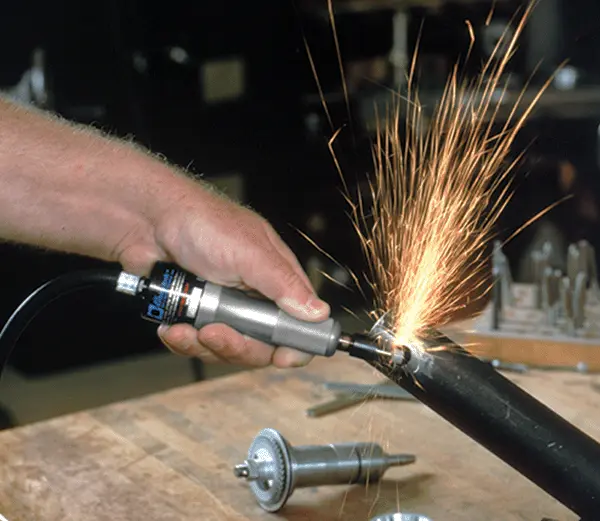

These Air Tools Cut Steel and Stress
| 202SV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 34 hours, 44 minutes |
| Time to reach ELV 5 m/s² A(8) | 138 hours, 55 minutes |
| Vibration magnitude m/s² r.m.s | 1.20 |
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
202SV Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 202SV Dimensions | |||
| A | 0.81” (20.57 mm) | D | 4.36” (110.74 mm) |
| B | 0.75” (19.05 mm) | E | 5.28” (134.11 mm) |
| C | 2.0” (50.8 mm) | F | 7.03” (178.56 mm) |
| 202SV Dimensions | |
| A | 0.81” (20.57 mm) |
| B | 0.75” (19.05 mm) |
| C | 2.0” (50.8 mm) |
| D | 4.36” (110.74 mm) |
| E | 5.28” (134.11 mm) |
| F | 7.03” (178.56 mm) |
Equipment
Included Equipment
Standard Equipment
1/8” or 3 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32207 |
| 1/8" | 3 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 32230 | 30,000 | 32231 |
| 40,000 | 32240 | 40,000 | 32241 |
| 50,000 | 32250 | 50,000 | 32251 |
| 65,000 | 32260 | 65,000 | 32261 |
| 1/8" w/Brake | 3 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 32234 | 30,000 | 32235 |
| 40,000 | 32244 | 40,000 | 32245 |
| 50,000 | 32254 | 50,000 | 32255 |
| 65,000 | 32264 | 65,000 | 32265 |
