201SV
Straight Hand Tool Series
1/8” / 3mm Capacity
You will immediately feel the 201SV’s ultra-low vibration and weight and hear the < 65 dBA sound level. The light 201 is powerful – designed to work reliably in industrial applications. The 201SV with slide valve for quick-shut off is rated for nonstop work: 128 hours 15 minutes before reaching EAV 2.5 m/s2 A(8) or 513 hours before reaching EAV 5 m/s2 A(8). Now you can work safer and longer and there’s no maintenance required. Only a light hand guiding the 201SV is needed to get our signature benefits-improved precision, faster-cutting action, and finer finished surface quality
| 201SV Specifications | ||||
| Speed RPM | 40,000 | 50,000 | 65,000 | 90,000 |
| Power Rating hp (kW) | 0.15 (0.11) | 0.2 (0.15) | ||
| Inlet Air Pressure | 90 psi (6.2 bar) | |||
| Air Consumption Idle cfm (l/s) | 3 (1.51) | 4 (1.89) | 5 (2.36) | |
| Air Consumption Working Flow cfm (l/s) | 4.8 (2.27) - 7 (3.30) | |||
| Air Hoses and Fittings Minimum Size | 3/16" ID | |||
| Sound Level | Less Than 65 dBA | |||
| Max Shank Capacity | 1/8" (3mm) | |||
| Hand Tool Weight | 6oz (0.17kg) | |||
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 201SV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 128 hours, 15 minutes |
| Time to reach ELV 5 m/s² A(8) | 513 hours |
| Vibration magnitude m/s² r.m.s | 0.62 |
201SV Dimensions
All fittings, couplings, and hoses must have a minimum of 3/16" internal diameter.
| 201SV Dimensions | |||
| A | 0.74” (18.80mm) | D | 3.59” (91.19mm) |
| B | 0.62” (15.75mm) | E | 4.69” (119.13mm) |
| C | 1.50” (38.10mm) | F | 6.11” (155.19mm) |
Equipment
Included Equipment
Standard Equipment
1/8” or 3mm collet standard – other sizes optional. Oil-free 90 psi (6.2 bar), clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32107 |
| 1/8" | 3 mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 32140 | 40,000 | 32141 |
| 50,000 | 32150 | 50,000 | 32151 |
| 65,000 | 32160 | 65,000 | 32161 |
| 90,000 | 32170 | 90,000 | 32171 |
| 1/8" w/Brake | 3 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 32144 | 40,000 | 32145 |
| 50,000 | 32154 | 50,000 | 32155 |
| 65,000 | 32164 | 65,000 | 32165 |
| 90,000 | 32174 | 90,000 | 32175 |
Videos

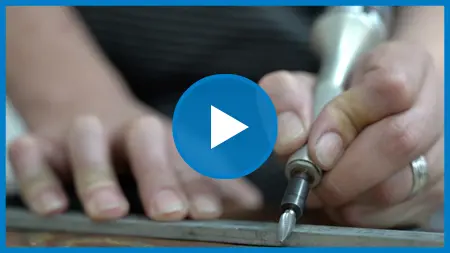

Cut Cleaner at 65,000 rpm with no Maintenance and no Stress
65,000 RPM Pencil Grinder Improves Precision for Finer Surface Quality
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
