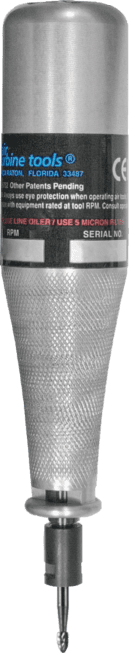

200SV
Straight Hand Tool Series
1/8” / 3 mm Capacity
If you like an inkpot shape the super ergonomic 200SV Series is the tool for you. The 200SV delivers power at 0.2 HP (0.15 kW) at governed 50,000 RPM. That’s the difference. Governed high speed stays high when you cut. You will increase your productivity and improve finish quality – remember coated cutting tools only work well at high speed Compact and easy to grip the 200SV weighs only 5.4 oz (0.15 kg). Low vibration magnitude of 1.67 m/s² r.m.s makes non-stop work easy – with reduced hand-arm stress. Only a light hand is needed to guide this 50,000 RPM tool as “speed does the cutting”. Our patented automatic brake option stops the 200SV in seconds.
| 200SV Specifications | |
| Speed | 50,000 RPM |
| Power Rating | 0.2 HP (0.15 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) |
| Air Consumption Idle | 4 CFM (1.89 L/s) |
| Air Consumption Working Flow | 6 CFM - 9 CFM (2.83 L/s - 3.3 L/s) |
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter |
| Sound Level | Less Than 67 dBA |
| Max Shank Capacity | 1/8" (3 mm) |
| Hand Tool Weight | 5.4 oz (0.15 kg) |
| 200SV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 50,000 RPM |
| 0.2 HP (0.15 kW) |
| 90 psi (6.2 bar) |
| 4 CFM (1.89 L/s) |
| 6 CFM - 9 CFM (2.83 L/s - 3.3 L/s) |
| 3/16" internal diameter |
| Less Than 67 dBA |
| 1/8" (3 mm) |
| 5.4 oz (0.15 kg) |
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 200SV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 17 hours, 58 minutes |
| Time to reach ELV 5 m/s² A(8) | 71 hours, 50 minutes |
| Vibration magnitude m/s² r.m.s | 1.67 |
200SV Dimensions
All fittings, couplings, and hoses must have a minimum of 3/16" internal diameter.
| 200SV Dimensions | |||
| A | 0.64" (16.37 mm) | C | 1.22" (30.99 mm) |
| B | 0.74" (18.79 mm) | D | 5.64" (5.64 mm) |
| 200SV Dimensions | |
| A | 0.64" (16.37 mm) |
| B | 0.74" (18.79 mm) |
| C | 1.22" (30.99 mm) |
| D | 5.64" (5.64 mm) |
Equipment
Included Equipment
Standard Equipment
1/8” or 3 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32107 |
| 1/8" | 3 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 50,000 | 32060 | 50,000 | 32061 |
| 1/8" w/Brake | 3 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 50,000 | 32062 | 50,000 | 32063 |
