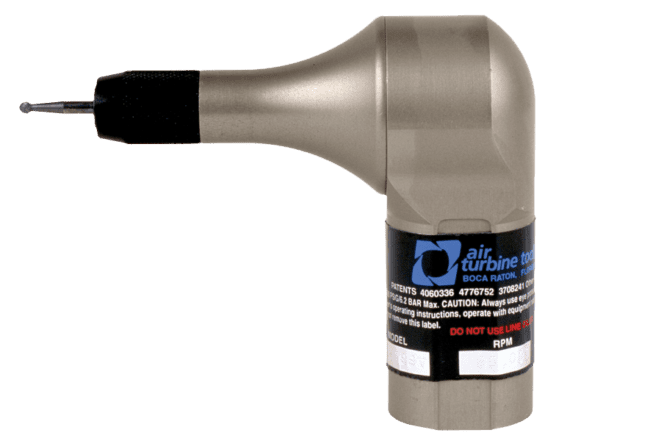

0190SSV
Angle Hand Tool Series
1/8” / 3 mm Capacity
For a finger or palm-held tool the 0190SSV (short version) allows the user exceptionally fine control for close proximity work. This well-balanced, low vibration 0190SSV tool is ideal. For polishing at 40,000 RPM or marking or deburring at 65,000 RPM, this tool is comfortable and exact. The motor is in the head. There are no gears. Precise and with low vibration. No maintenance or lubrication – ever
| 0190SSV Specifications | |||
| Speed | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 3.2 CFM (1.51 L/s) | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow | 4.7 CFM - 7 CFM (2.22 L/s - 3.3 L/s) |
||
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/8" (3 mm) | ||
| Hand Tool Weight | 6 oz (0.17 kg) | ||
| 0190SSV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| 90 psi (6.2 bar) | ||
| 3.2 CFM (1.51 L/s) | 4 CFM (1.89 L/s) | |
| 4.7 CFM - 7 CFM (2.22 L/s - 3.3 L/s) |
||
| 3/16" internal diameter | ||
| Less Than 67 dBA | ||
| 1/8" (3 mm) | ||
| 6 oz (0.17 kg) | ||
These Air Tools Cut Steel and Stress
0190SSV Dimensions
All fittings, couplings, and hoses must have a minimum of 3/16" internal diameter.
| 0190SSV Dimensions | |||
| A | 0.74” (18.8 mm) | D | 1.25” (31.75 mm) |
| B | 0.62” (15.75 mm) | E | 1.44” (36.57 mm) |
| C | 2.37” (60.1 mm) | F | 2.99” (75.94 mm) |
| 0190SSV Dimensions | |
| A | 0.74” (18.8 mm) |
| B | 0.62” (15.75 mm) |
| C | 2.37” (60.1 mm) |
| D | 1.25” (31.75 mm) |
| E | 1.44” (36.57 mm) |
| F | 2.99” (75.94 mm) |
Equipment
Included Equipment
► 0190SSV Hand Tool
► Collet System (1/8” or 3 mm standard)
► Collet Wrenches
► Rear Exhaust
► 5’ Air Supply Assembly with Slide Valve
► 1/4” NPT Air Supply Fitting
Standard Equipment
1/8” or 3 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32107 |
| 1/8" | 3mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 35146 | 40,000 | 35148 |
| 50,000 | 35156 | 50,000 | 35158 |
| 65,000 | 35166 | 65,000 | 35168 |
