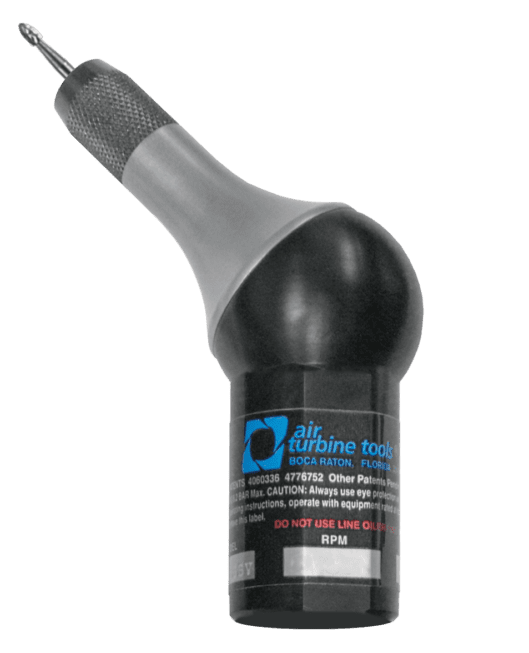

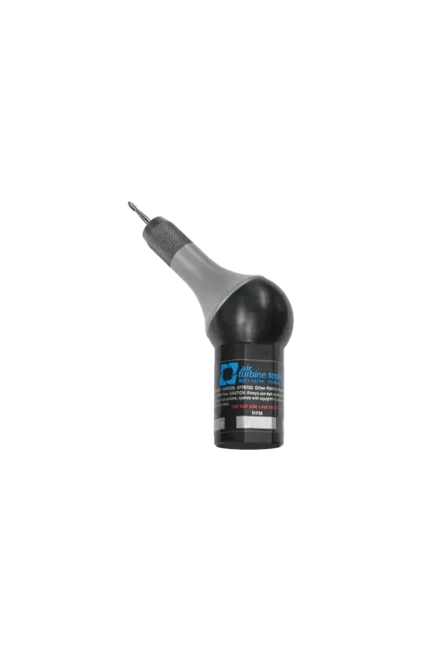

0145SSV
Angle Hand Tool Series
1/8” / 3 mm Capacity
Put the 0145SSV in your fingers or palm and experience exceptionally fine control necessary for close proximity work. Feather-light at 6 oz (0.17 kg) the 0145SSV has lots of torque. The 0145 is so naturally balanced that it feels like an extension of your hand. This tool is effective for precision work, marking, or deburring but it’s so light you hardly notice you are working. Our patented 45° design conforms to the natural position of your hand for hand-eye coordination. Because the motor is in the 45° head there are no gears, vanes, or brushes to vibrate or heat up. As a result, the 0145 delivers direct drive reliability with only 2 moving parts combined with lower vibration and weight than a gear head.
| 0145SSV Specifications | |||
| Speed | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 3.2 CFM (1.51 L/s) | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow | 4.7 CFM - 7 CFM (2.22 L/s - 3.3 L/s) |
||
| Air Hoses and Fittings Minimum Size | 3/16" internal diameter | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/8" (3 mm) | ||
| Hand Tool Weight | 6 oz (0.17 kg) | ||
| 0145SSV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | |
| 90 psi (6.2 bar) | ||
| 3.2 CFM (1.51 L/s) | 4 CFM (1.89 L/s) | |
| 4.7 CFM - 7 CFM (2.22 L/s - 3.3 L/s) |
||
| 3/16" internal diameter | ||
| Less Than 67 dBA | ||
| 1/8" (3 mm) | ||
| 6 oz (0.17 kg) | ||

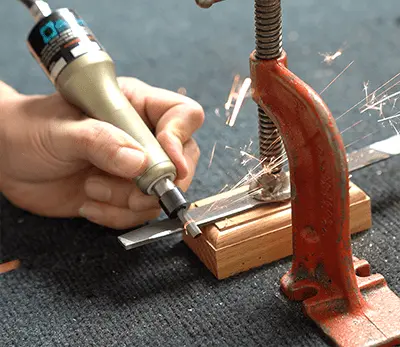

These Air Tools Cut Steel and Stress
| 0145SSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 30 hours, 44 minutes |
| Time to reach ELV 5 m/s² A(8) | 122 hours, 53 minutes |
| Vibration magnitude m/s² r.m.s | 1.28 |
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
0145SSV Dimensions
All fittings, couplings, and hoses must have a minimum of 3/16" internal diameter.
| 0145SSV Dimensions | |||
| A | 0.85” (21.59 mm) | D | 1.25” (31.75 mm) |
| B | 2.57” (65.15 mm) | E | 1.74” (44.2 mm) |
| C | 1.5” (38.1 mm) | F | 4.3” (109.22 mm) |
| 0145SSV Dimensions | |
| A | 0.85” (21.59 mm) |
| B | 2.57” (65.15 mm) |
| C | 1.5” (38.1 mm) |
| D | 1.25” (31.75 mm) |
| E | 1.74” (44.2 mm) |
| F | 4.3” (109.22 mm) |
Equipment
Included Equipment
Standard Equipment
1/8” or 3 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32107 |
| 1/8" | 3mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 35042 | 40,000 | 35043 |
| 50,000 | 35052 | 50,000 | 35053 |
| 65,000 | 35062 | 65,000 | 35063 |
